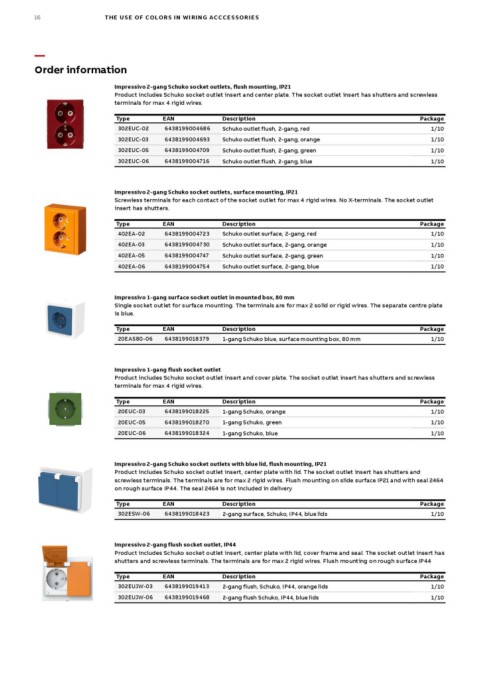

16 THE USE OF COLORS IN WIRING ACCCESSORIES

—
Order information

Impressivo 2-gang Schuko socket outlets, flush mounting, IP21
Product includes Schuko socket outlet insert and center plate. The socket outlet insert has shutters and screwless
terminals for max 4 rigid wires.

Type               EAN            Description                                      Package
302EUC-02          6438199004686  Schuko outlet flush, 2-gang, red                      1/10
302EUC-03          6438199004693  Schuko outlet flush, 2-gang, orange                   1/10
302EUC-05          6438199004709  Schuko outlet flush, 2-gang, green                    1/10
302EUC-06          6438199004716  Schuko outlet flush, 2-gang, blue                     1/10

Impressivo 2-gang Schuko socket outlets, flush mounting, with cover plate, IP21
Product includes Schuko socket outlet insert and cover plate. The socket outlet insert has shutters and screwless
terminals for max 4 rigid wires.

Type               EAN            Description                                      Package
402EA-02           6438199004723  Schuko outlet surface, 2-gang, red                    1/10
402EA-03           6438199004730  Schuko outlet surface, 2-gang, orange                 1/10
402EA-05           6438199004747  Schuko outlet surface, 2-gang, green                  1/10
402EA-06           6438199004754  Schuko outlet surface, 2-gang, blue                   1/10

Impressivo 1-gang surface socket outlet in mounted box, 80 mm
texttexttext

Type               EAN            Description                                      Package
20EAS80-06         6438199018379  1-gang Schuko blue, surface mounting box, 80 mm       1/10

Impressivo 1-gang flush socket outlet
Product includes Schuko socket outlet insert and cover plate. The socket outlet insert has shutters and screwless
terminals for max 4 rigid wires.

Type               EAN            Description                                      Package
20EUC-03           6438199018225  1-gang Schuko, orange                                 1/10
20EUC-05           6438199018270  1-gang Schuko, green                                  1/10
20EUC-06           6438199018324  1-gang Schuko, blue                                   1/10

Impressivo 2-gang Schuko socket outlets with blue lid, flush mounting, IP21
Product includes Schuko socket outlet insert, center plate with lid. The socket outlet insert has shutters and
screwless terminals. The terminals are for max 2 rigid wires. Flush mounting on slide surface IP21 and with seal 2464
on rough surface IP44. The seal 2464 is not included in delivery

Type               EAN            Description                                      Package
302ESW-06          6438199018423  2-gang surface, Schuko, IP44, blue lids               1/10

Impressivo 2-gang flush socket outlet, IP44
Product includes Schuko socket outlet insert, center plate with lid, cover frame and seal. The socket outlet insert has
shutters and screwless terminals. The terminals are for max 2 rigid wires. Flush mounting on rough surface IP44

Type               EAN            Description                                      Package
302EUJW-03         6438199019413  2-gang flush, Schuko, IP44, orange lids               1/10
302EUJW-06         6438199019468  2-gang flush Schuko, IP44, blue lids                  1/10
