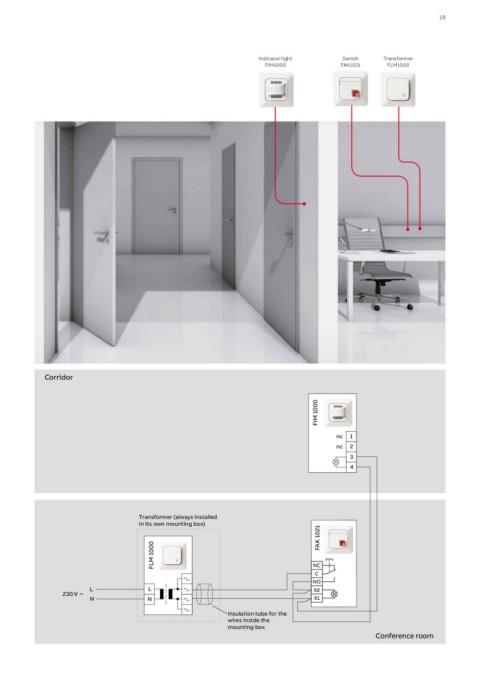

Indicator light Switch Transformer
FIM1000 FAK1021 FLM1000

Corridor

FIM 1000

nc 1
nc 2

3
4

Transformer (always installed FAK 1021
in its own mounting box)

FLM 1000
NC
230 V ~ L
N C

NO
L X2 2
N X1 1

Insulation tube for the
wires inside the
mounting box

Conference room
