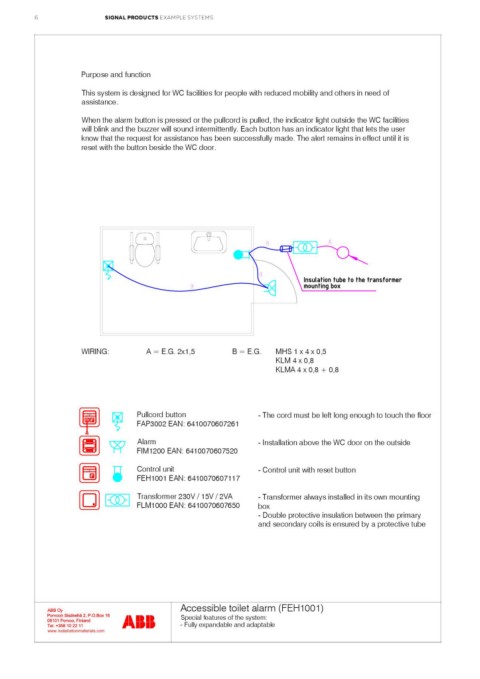

6 SIGNAL PRODUCTS EXAMPLE SYSTEMS

Purpose and function
This system is designed for WC facilities for people with reduced mobility and others in need of
assistance.
When the alarm button is pressed or the pullcord is pulled, the indicator light outside the WC facilities
will blink and the buzzer will sound intermittently. Each button has an indicator light that lets the user
know that the request for assistance has been successfully made. The alert remains in effect until it is
reset with the button beside the WC door.

WIRING: A = E.G. 2x1,5 B = E.G. MHS 1 x 4 x 0,5
KLM 4 x 0,8
KLMA 4 x 0,8 + 0,8

Pullcord button - The cord must be left long enough to touch the floor
FAP3002 EAN: 6410070607261
- Installation above the WC door on the outside
Alarm
FIM1200 EAN: 6410070607520 - Control unit with reset button

Control unit - Transformer always installed in its own mounting
FEH1001 EAN: 6410070607117 box
- Double protective insulation between the primary
Transformer 230V / 15V / 2VA and secondary coils is ensured by a protective tube
FLM1000 EAN: 6410070607650

Accessible toilet alarm (FEH1001)

Special features of the system:
- Fully expandable and adaptable
