P. 3

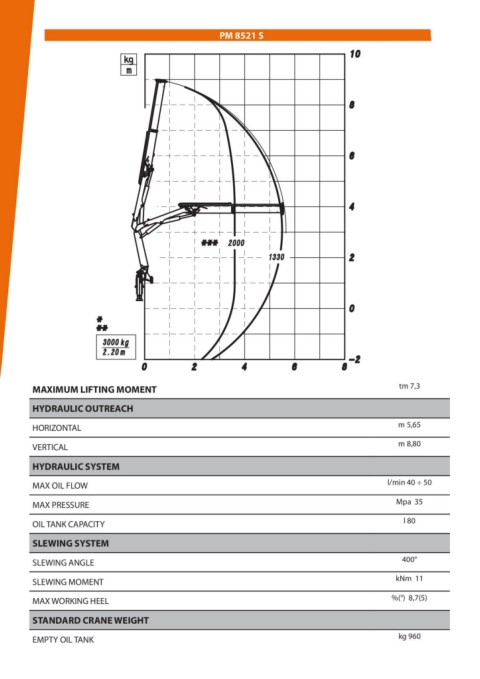

PM 8521 S

MAXIMUM LIFTING MOMENT                 tm 7,3
HYDRAULIC OUTREACH
HORIZONTAL                             m 5,65
VERTICAL                               m 8,80
HYDRAULIC SYSTEM
MAX OIL FLOW                       l/min 40 ÷ 50
MAX PRESSURE                          Mpa 35
OIL TANK CAPACITY                        l 80
SLEWING SYSTEM
SLEWING ANGLE                           400°
SLEWING MOMENT                        kNm 11
MAX WORKING HEEL                    %(°) 8,7(5)
STANDARD CRANE WEIGHT
EMPTY OIL TANK                         kg 960
