Page 148 - ngk-sytytys-hehkutulpat
P. 148
86.0
22.0
95.0
25.0
84.0
22.0
84.0
22.0
70.0
19.5
70.0
19.5
70.0
19.5

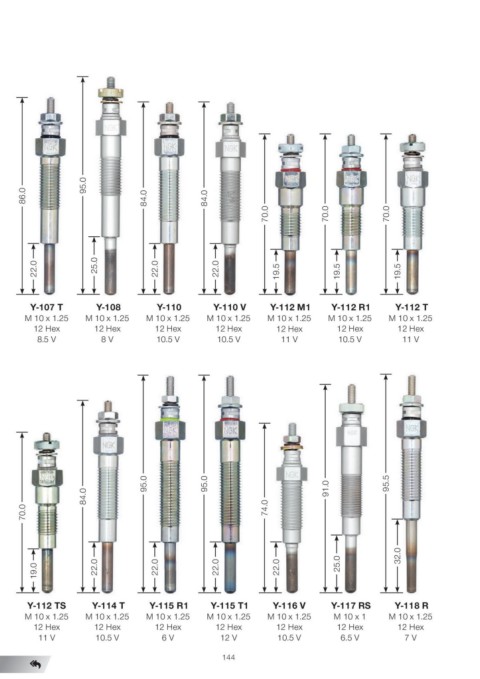

Y-107 T Y-108 Y-110 Y-110 V Y-112 M1 Y-112 R1 Y-112 T
M 10 x 1.25 M 10 x 1.25 M 10 x 1.25 M 10 x 1.25 M 10 x 1.25 M 10 x 1.25 M 10 x 1.25
12 Hex 12 Hex 12 Hex 12 Hex 12 Hex 12 Hex 12 Hex
8.5 V 8V 10.5 V 10.5 V 11 V 10.5 V 11 V
70.0
19.0
84.0
22.0
95.0
22.0
95.0
22.0
74.0
22.0
91.0
25.0
95.5
32.0
Y-112 TS Y-114 T Y-115 R1 Y-115 T1 Y-116 V Y-117 RS Y-118 R
M 10 x 1.25 M 10 x 1.25 M 10 x 1.25 M 10 x 1.25 M 10 x 1.25 M 10 x 1 M 10 x 1.25
12 Hex
12 Hex 12 Hex 12 Hex 12 Hex 12 Hex 12 Hex
11 V 10.5 V 6V 12 V 10.5 V 6.5 V 7V
144
