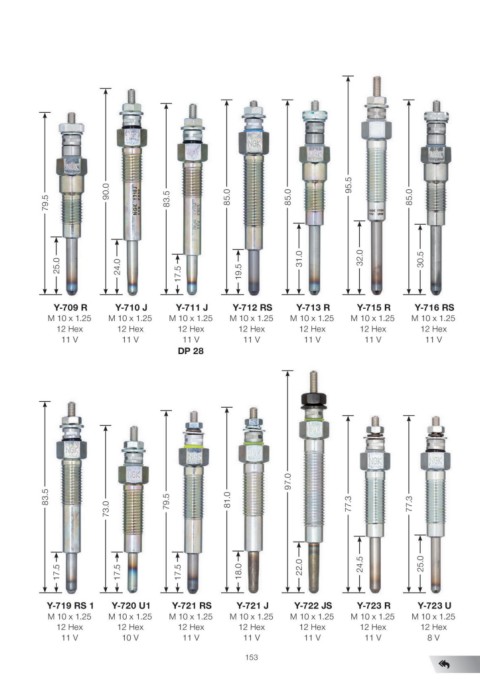

P. 157
79.5
25.0
90.0
24.0
83.5
17.5
85.0
19.5
85.0
31.0
95.5
32.0
85.0
30.5
Y-709 R Y-710 J Y-711 J Y-712 RS Y-713 R Y-715 R Y-716 RS
M 10 x 1.25 M 10 x 1.25 M 10 x 1.25 M 10 x 1.25 M 10 x 1.25 M 10 x 1.25 M 10 x 1.25
12 Hex 12 Hex 12 Hex 12 Hex 12 Hex 12 Hex 12 Hex
11 V 11 V 11 V 11 V 11 V 11 V 11 V
DP 28
83.5
17.5
73.0
17.5
79.5
17.5
81.0
18.0
97.0
22.0
77.3
24.5
77.3
25.0
Y-719 RS 1 Y-720 U1 Y-721 RS Y-721 J Y-722 JS Y-723 R Y-723 U
M 10 x 1.25 M 10 x 1.25 M 10 x 1.25 M 10 x 1.25 M 10 x 1.25 M 10 x 1.25 M 10 x 1.25
12 Hex 12 Hex 12 Hex 12 Hex 12 Hex 12 Hex 12 Hex
11 V 10 V 11 V 11 V 11 V 11 V 8V
153
