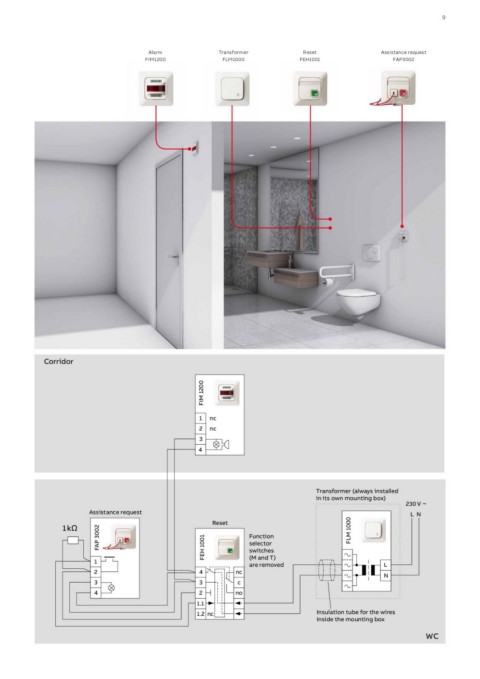

Alarm Transformer Reset 9
FIM1200 FLM1000 FEH1001
Assistance request
FAP3002

Corridor

FIM 1200

1 nc
2 nc
3
4

Transformer (always installed 230 V ~
in its own mounting box) LN

Assistance request

1kΩ FAP 3002 Reset FLM 1000
FEH 1001
1 Function
2 4 selector L
3 3 switches N
4 2 (M and T)
1.1 are removed
1.2 nc nc
c
no

Insulation tube for the wires
inside the mounting box

WC
