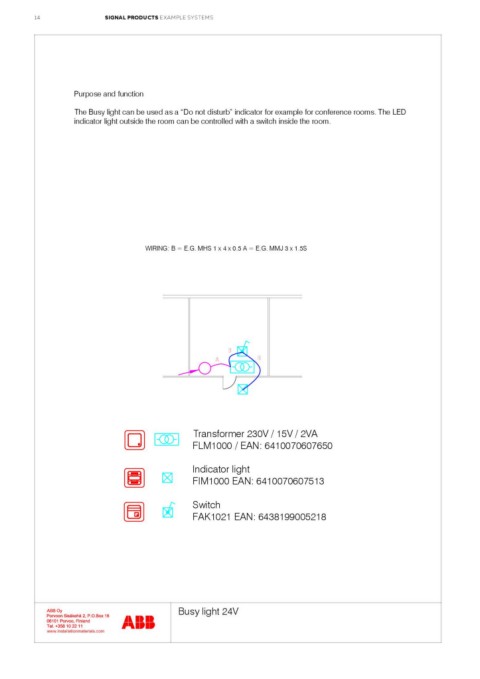

14 SIGNAL PRODUCTS EXAMPLE SYSTEMS
Purpose and function
The Busy light can be used as a “Do not disturb” indicator for example for conference rooms. The LED
indicator light outside the room can be controlled with a switch inside the room.
WIRING: B = E.G. MHS 1 x 4 x 0.5 A = E.G. MMJ 3 x 1.5S
Transformer 230V / 15V / 2VA
FLM1000 / EAN: 6410070607650
Indicator light
FIM1000 EAN: 6410070607513
Switch
FAK1021 EAN: 6438199005218
Busy light 24V
