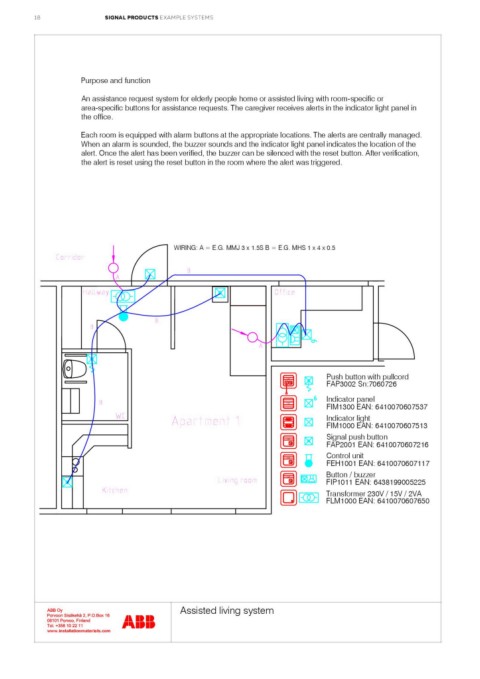

18 SIGNAL PRODUCTS EXAMPLE SYSTEMS

Purpose and function
An assistance request system for elderly people home or assisted living with room-specific or
area-specific buttons for assistance requests. The caregiver receives alerts in the indicator light panel in
the office.
Each room is equipped with alarm buttons at the appropriate locations. The alerts are centrally managed.
When an alarm is sounded, the buzzer sounds and the indicator light panel indicates the location of the
alert. Once the alert has been verified, the buzzer can be silenced with the reset button. After verification,
the alert is reset using the reset button in the room where the alert was triggered.

WIRING: A = E.G. MMJ 3 x 1.5S B = E.G. MHS 1 x 4 x 0.5

Push button with pullcord
FAP3002 Sn:7060726

Indicator panel
FIM1300 EAN: 6410070607537
Indicator light
FIM1000 EAN: 6410070607513
Signal push button
FAP2001 EAN: 6410070607216
Control unit
FEH1001 EAN: 6410070607117
Button / buzzer
FIP1011 EAN: 6438199005225
Transformer 230V / 15V / 2VA
FLM1000 EAN: 6410070607650

Assisted living system
