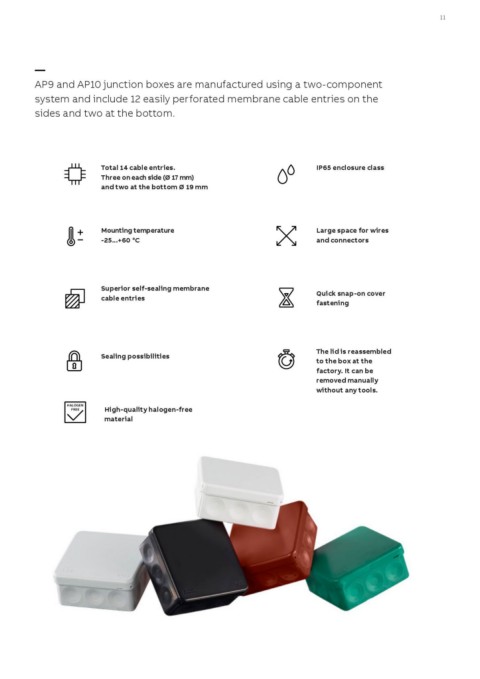

AP9 and AP10 junction boxes are manufactured using a two-component
system and include 12 easily perforated membrane cable entries on the
sides and two at the bottom.
Total 14 cable entries. IP65 enclosure class
Three on each side (Ø 17 mm)
and two at the bottom Ø 19 mm Large space for wires
and connectors
Mounting temperature
-25...+60 °C Quick snap-on cover
fastening
Superior self-sealing membrane
cable entries The lid is reassembled
to the box at the
Sealing possibilities factory. It can be
removed manually
without any tools.
HALOGEN High-quality halogen-free
FREE material
