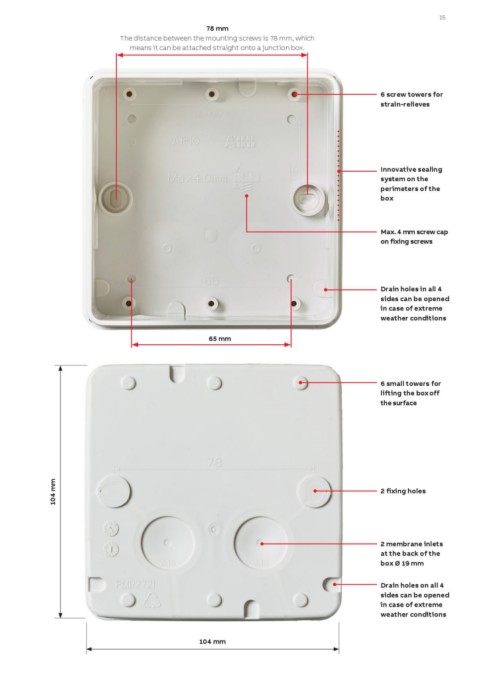

78 mm 15
The distance between the mounting screws is 78 mm, which
6 screw towers for
means it can be attached straight onto a junction box. strain-relieves
65 mm Innovative sealing
system on the
perimeters of the
box
Max. 4 mm screw cap
on fixing screws
Drain holes in all 4
sides can be opened
in case of extreme
weather conditions
6 small towers for
lifting the box off
the surface
104 mm 2 fixing holes
2 membrane inlets
at the back of the
box Ø 19 mm
Drain holes on all 4
sides can be opened
in case of extreme
weather conditions
104 mm
