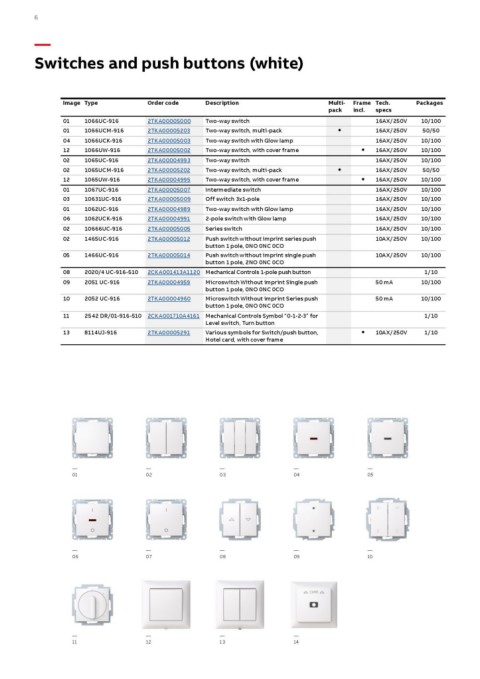

Switches and push buttons (white)

Image Type      Order code         Description                                                         Multi-    Frame Tech.           Packages
                                                                                                       pack      incl. specs
01 1066UC-916   2TKA00005000       Two-way switch                                                                                        10/100
                                                                                                              l             16AX/250V     50/50
01 1066UCM-916  2TK A0 0 0 05203   Two-way switch, multi-pack                                                               16AX/250V    10/100
                                                                                                              l             16AX/250V    10/100
04 1066UCK-916  2TK A0 0 0 050 03  Two-way switch with Glow lamp                                                     l 16AX/250V         10/100
                                                                                                                            16AX/250V     50/50
12 1066UW-916   2TKA00005002       Two-way switch, with cover frame                                                         16AX/250V    10/100
                                                                                                                     l 16AX/250V         10/100
02 1065UC-916   2TK A0 0 0 0 4993  Two-way switch                                                                           16AX/250V    10/100
                                                                                                                            16AX/250V    10/100
02 1065UCM-916  2TKA00005202       Two-way switch, multi-pack                                                               16AX/250V    10/100
                                                                                                                            16AX/250V    10/100
12 1065UW-916   2TKA00004995       Two-way switch, with cover frame                                                         16AX/250V    10/100
                                                                                                                            10AX/250V
01 1067UC-916   2TKA00005007       Intermediate switch                                                                                   10/100

03 10631UC-916  2TKA00005009       Off switch 3x1-pole                                                                                     1/10
                                                                                                                                         10/100
01 1062UC-916   2TKA00004989       Two-way switch with Glow lamp
                                                                                                                                         10/100
06 1062UCK-916  2TK A0 0 0 0 4991  2-pole switch with Glow lamp
                                                                                                                                           1/10
02 10666UC-916  2TKA00005005       Series switch
                                                                                                                                           1/10
02 1465UC-916   2TK A0 0 0 05012   Push switch without imprint series push
                                   button 1 pole, 0NO 0NC 0CO

05 1466UC-916   2TK A0 0 0 05014   Push switch without imprint single push                                       10AX/250V
                                   button 1 pole, 2NO 0NC 0CO

08 2020/4 UC-916-510 2CKA001413A1120 Mechanical Controls 1-pole push button

09 2051 UC-916  2TKA00004959       Microswitch Without imprint Single push                                       50 mA
                                   button 1 pole, 0NO 0NC 0CO                                                    50 mA

10 2052 UC-916  2TKA00004960       Microswitch Without imprint Series push
                                   button 1 pole, 0NO 0NC 0CO

11 2542 DR/01-916-510 2CKA001710A4161 Mechanical Controls Symbol “0-1-2-3” for
                                                                            Level switch, Turn button

13 8114UJ-916   2TK A0 0 0 05291   Various symbols for Switch/push button,                                       l 10AX/250V
                                   Hotel card, with cover frame

—————
01 02 03 04 05

—————
06 07 08 09 10

————
11 12 13 14
