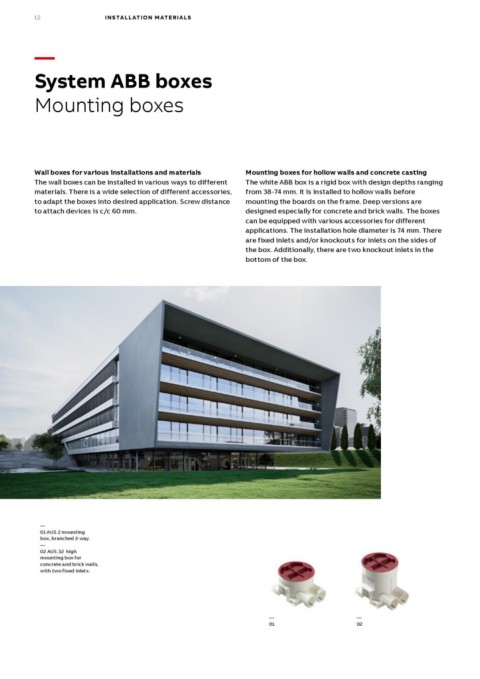

12 INSTALLATION MATERIALS
—
System ABB boxes
Mounting boxes
Wall boxes for various installations and materials Mounting boxes for hollow walls and concrete casting
The wall boxes can be installed in various ways to different The white ABB box is a rigid box with design depths ranging
materials. There is a wide selection of different accessories, from 38-74 mm. It is installed to hollow walls before
to adapt the boxes into desired application. Screw distance mounting the boards on the frame. Deep versions are
to attach devices is c/c 60 mm. designed especially for concrete and brick walls. The boxes
can be equipped with various accessories for different
applications. The installation hole diameter is 74 mm. There
are fixed inlets and/or knockouts for inlets on the sides of
the box. Additionally, there are two knockout inlets in the
bottom of the box.
—
01 AU5.2 mounting
box, branched 2-way.
—
02 AU5.32 high
mounting box for
concrete and brick walls,
with two fixed inlets.
——
01 02
