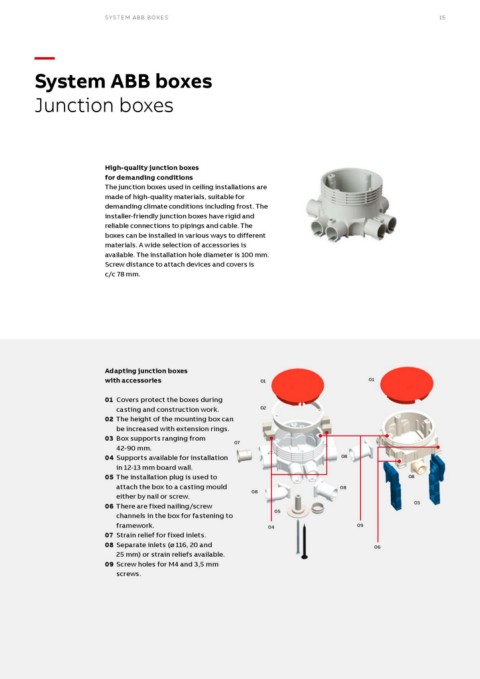

SYSTEM ABB BOXES 15
—
System ABB boxes
Junction boxes
High-quality junction boxes
for demanding conditions
The junction boxes used in ceiling installations are
made of high-quality materials, suitable for
demanding climate conditions including frost. The
installer-friendly junction boxes have rigid and
reliable connections to pipings and cable. The
boxes can be installed in various ways to different
materials. A wide selection of accessories is
available. The installation hole diameter is 100 mm.
Screw distance to attach devices and covers is
c/c 78 mm.
Adapting junction boxes 01 01
with accessories
01 Covers protect the boxes during
casting and construction work. 02
02 The height of the mounting box can 08
05
be increased with extension rings.
04
03 Box supports ranging from 07
42-90 mm.
04 Supports available for installation 08
08
in 12-13 mm board wall.
09
05 The installation plug is used to 06 08
03
attach the box to a casting mould
either by nail or screw.
06 There are fixed nailing/screw
channels in the box for fastening to
framework.
07 Strain relief for fixed inlets.
08 Separate inlets (ø 116, 20 and
25 mm) or strain reliefs available.
09 Screw holes for M4 and 3,5 mm
screws.
