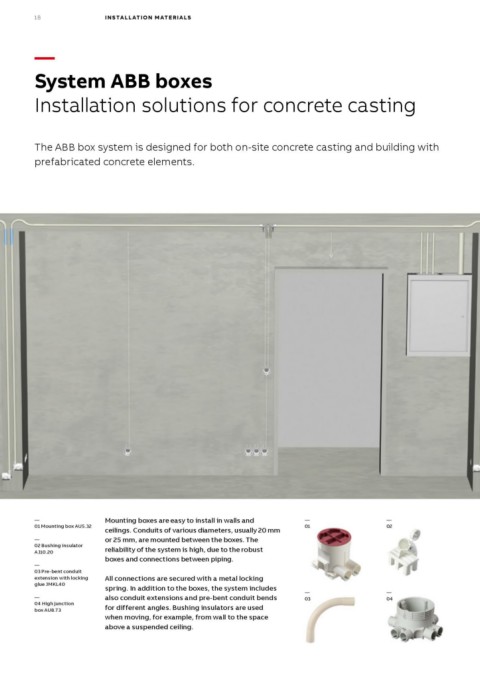

18 INSTALLATION MATERIALS
—
System ABB boxes
Installation solutions for concrete casting
The ABB box system is designed for both on-site concrete casting and building with
prefabricated concrete elements.
— Mounting boxes are easy to install in walls and — —
01 Mounting box AU5.32 ceilings. Conduits of various diameters, usually 20 mm 01 02
or 25 mm, are mounted between the boxes. The
— reliability of the system is high, due to the robust — —
02 Bushing insulator boxes and connections between piping. 03 04
AJ10.20
All connections are secured with a metal locking
— spring. In addition to the boxes, the system includes
03 Pre-bent conduit also conduit extensions and pre-bent conduit bends
extension with locking for different angles. Bushing insulators are used
glue JMKL40 when moving, for example, from wall to the space
above a suspended ceiling.
—
04 High junction
box AU8.73
