SYSTEM ABB BOXES                                              21

—

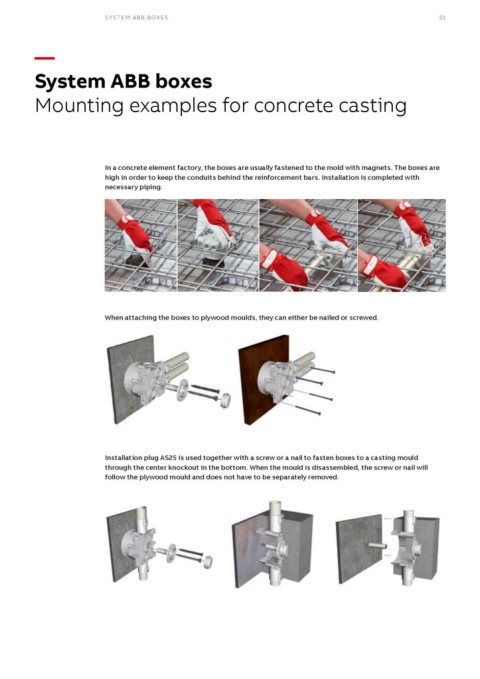

System ABB boxes
Mounting examples for concrete casting

In a concrete element factory, the boxes are usually fastened to the mold with magnets. The boxes are
high in order to keep the conduits behind the reinforcement bars. Installation is completed with
necessary piping.

When attaching the boxes to plywood moulds, they can either be nailed or screwed.

Installation plug AS25 is used together with a screw or a nail to fasten boxes to a casting mould
through the center knockout in the bottom. When the mould is disassembled, the screw or nail will
follow the plywood mould and does not have to be separately removed.
