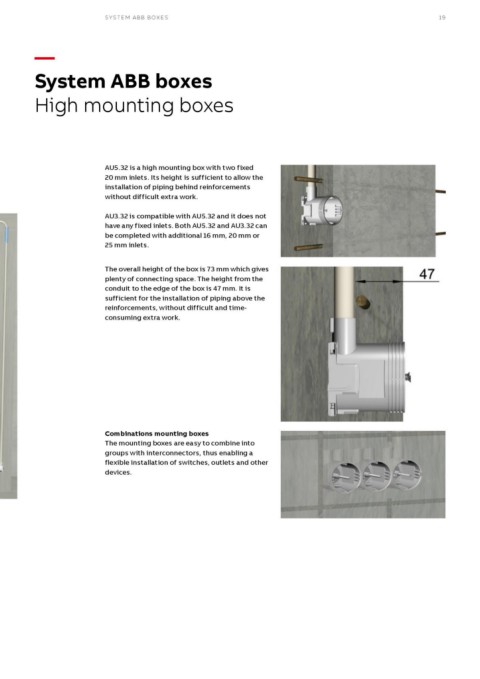

SYSTEM ABB BOXES 19
—
System ABB boxes
High mounting boxes
AU5.32 is a high mounting box with two fixed
20 mm inlets. Its height is sufficient to allow the
installation of piping behind reinforcements
without difficult extra work.
AU3.32 is compatible with AU5.32 and it does not
have any fixed inlets. Both AU5.32 and AU3.32 can
be completed with additional 16 mm, 20 mm or
25 mm inlets.
The overall height of the box is 73 mm which gives
plenty of connecting space. The height from the
conduit to the edge of the box is 47 mm. It is
sufficient for the installation of piping above the
reinforcements, without difficult and time-
consuming extra work.
Combinations mounting boxes
The mounting boxes are easy to combine into
groups with interconnectors, thus enabling a
flexible installation of switches, outlets and other
devices.
