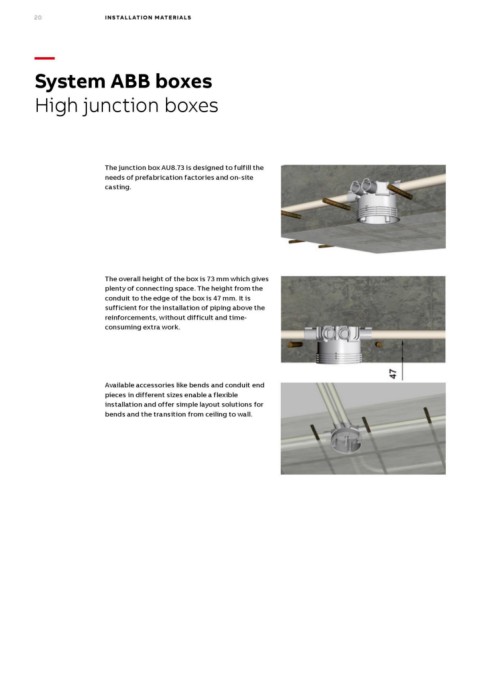

20 INSTALLATION MATERIALS

—
System ABB boxes
High junction boxes

                               The junction box AU8.73 is designed to fulfill the
                               needs of prefabrication factories and on-site
                               casting.

                               The overall height of the box is 73 mm which gives
                               plenty of connecting space. The height from the
                               conduit to the edge of the box is 47 mm. It is
                               sufficient for the installation of piping above the
                               reinforcements, without difficult and time-
                               consuming extra work.

                               Available accessories like bends and conduit end
                               pieces in different sizes enable a flexible
                               installation and offer simple layout solutions for
                               bends and the transition from ceiling to wall.
