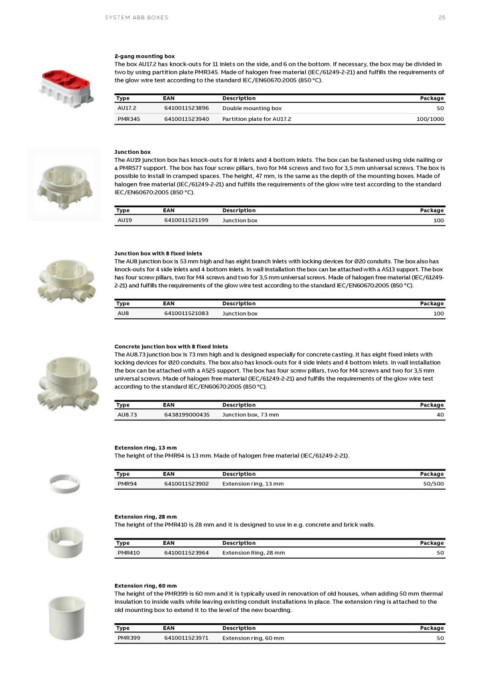

SYSTEM ABB BOXES 25

2-gang mounting box
The box AU17.2 has knock-outs for 11 inlets on the side, and 6 on the bottom. If necessary, the box may be divided in
two by using partition plate PMR345. Made of halogen free material (IEC/61249-2-21) and fulfills the requirements of
the glow wire test according to the standard IEC/EN60670:2005 (850 °C).

Type EAN Description Package
AU17.2 6410011523896 Double mounting box 50
PMR345 6410011523940 Partition plate for AU17.2
100/1000

Junction box
The AU19 junction box has knock-outs for 8 inlets and 4 bottom inlets. The box can be fastened using side nailing or
a PMR577 support. The box has four screw pillars, two for M4 screws and two for 3,5 mm universal screws. The box is
possible to install in cramped spaces. The height, 47 mm, is the same as the depth of the mounting boxes. Made of
halogen free material (IEC/61249-2-21) and fulfills the requirements of the glow wire test according to the standard
IEC/EN60670:2005 (850 °C).

Type EAN Description Package
AU19 6410011521199 Junction box 100

Junction box with 8 fixed inlets
The AU8 junction box is 53 mm high and has eight branch inlets with locking devices for Ø20 conduits. The box also has
knock-outs for 4 side inlets and 4 bottom inlets. In wall installation the box can be attached with a AS13 support. The box
has four screw pillars, two for M4 screws and two for 3,5 mm universal screws. Made of halogen free material (IEC/61249-
2-21) and fulfills the requirements of the glow wire test according to the standard IEC/EN60670:2005 (850 °C).

Type EAN Description Package
AU8 6410011521083 Junction box 100

Concrete junction box with 8 fixed inlets
The AU8.73 junction box is 73 mm high and is designed especially for concrete casting. It has eight fixed inlets with
locking devices for Ø20 conduits. The box also has knock-outs for 4 side inlets and 4 bottom inlets. In wall installation
the box can be attached with a AS25 support. The box has four screw pillars, two for M4 screws and two for 3,5 mm
universal screws. Made of halogen free material (IEC/61249-2-21) and fulfills the requirements of the glow wire test
according to the standard IEC/EN60670:2005 (850 °C).

Type EAN Description Package
AU8.73 6438199000435 Junction box, 73 mm 40

Extension ring, 13 mm
The height of the PMR94 is 13 mm. Made of halogen free material (IEC/61249-2-21).

Type EAN Description Package
PMR94 6410011523902 Extension ring, 13 mm 50/500

Extension ring, 28 mm
The height of the PMR410 is 28 mm and it is designed to use in e.g. concrete and brick walls.

Type EAN Description Package
PMR410 6410011523964 Extension Ring, 28 mm 50

Extension ring, 60 mm
The height of the PMR399 is 60 mm and it is typically used in renovation of old houses, when adding 50 mm thermal
insulation to inside walls while leaving existing conduit installations in place. The extension ring is attached to the
old mounting box to extend it to the level of the new boarding.

Type EAN Description Package
PMR399 6410011523971 Extension ring, 60 mm 50
