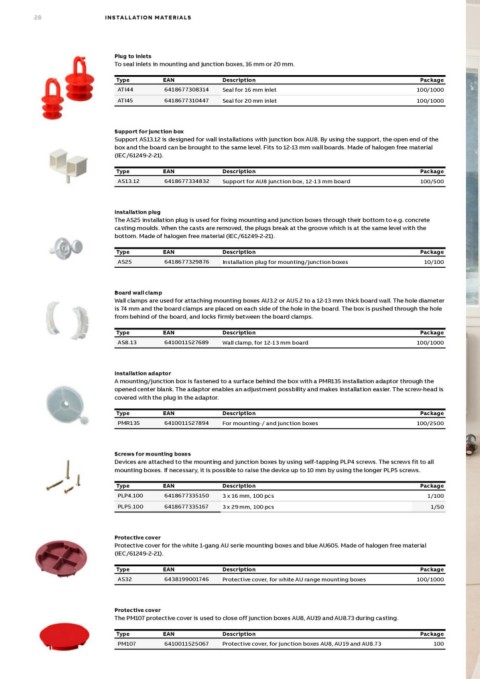

28 INSTALLATION MATERIALS

Plug to inlets
To seal inlets in mounting and junction boxes, 16 mm or 20 mm.

Type EAN Description Package
ATI44 6418677308314 Seal for 16 mm inlet 100/1000
ATI45 6418677310447 Seal for 20 mm inlet 100/1000

Support for junction box
Support AS13.12 is designed for wall installations with junction box AU8. By using the support, the open end of the
box and the board can be brought to the same level. Fits to 12-13 mm wall boards. Made of halogen free material
(IEC/61249-2-21).

Type EAN Description Package
AS13.12 6418677334832 Support for AU8 junction box, 12-13 mm board 100/500

Installation plug
The AS25 installation plug is used for fixing mounting and junction boxes through their bottom to e.g. concrete
casting moulds. When the casts are removed, the plugs break at the groove which is at the same level with the
bottom. Made of halogen free material (IEC/61249-2-21).

Type EAN Description Package
AS25 6418677329876 Installation plug for mounting/junction boxes 10/100

Board wall clamp
Wall clamps are used for attaching mounting boxes AU3.2 or AU5.2 to a 12-13 mm thick board wall. The hole diameter
is 74 mm and the board clamps are placed on each side of the hole in the board. The box is pushed through the hole
from behind of the board, and locks firmly between the board clamps.

Type EAN Description Package
AS8.13 6410011527689 Wall clamp, for 12-13 mm board 100/1000

Installation adaptor
A mounting/junction box is fastened to a surface behind the box with a PMR135 installation adaptor through the
opened center blank. The adaptor enables an adjustment possbility and makes installation easier. The screw-head is
covered with the plug in the adaptor.

Type EAN Description Package
PMR135 6410011527894 For mounting-/ and junction boxes 100/2500

Screws for mounting boxes
Devices are attached to the mounting and junction boxes by using self-tapping PLP4 screws. The screws fit to all
mounting boxes. If necessary, it is possible to raise the device up to 10 mm by using the longer PLP5 screws.

Type EAN Description Package
PLP4.100 6418677335150 3 x 16 mm, 100 pcs 1/100
PLP5.100 6418677335167 3 x 29 mm, 100 pcs 1/50

Protective cover
Protective cover for the white 1-gang AU serie mounting boxes and blue AU605. Made of halogen free material
(IEC/61249-2-21).

Type EAN Description Package
AS32 6438199001746 Protective cover, for white AU range mounting boxes 100/1000

Protective cover
The PM107 protective cover is used to close off junction boxes AU8, AU19 and AU8.73 during casting.

Type EAN Description Package
PM107 6410011525067 Protective cover, for junction boxes AU8, AU19 and AU8.73 100
