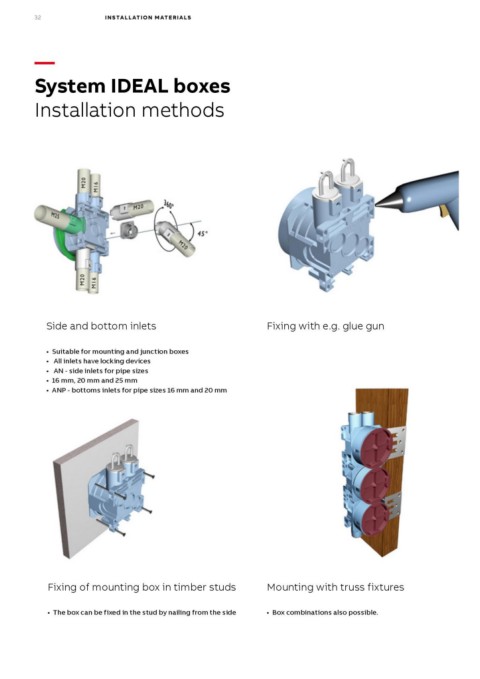

32 INSTALLATION MATERIALS
—
System IDEAL boxes
Installation methods
Side and bottom inlets Fixing with e.g. glue gun
• Suitable for mounting and junction boxes
• All inlets have locking devices
• AN - side inlets for pipe sizes
• 16 mm, 20 mm and 25 mm
• ANP - bottoms inlets for pipe sizes 16 mm and 20 mm
Fixing of mounting box in timber studs Mounting with truss fixtures
• The box can be fixed in the stud by nailing from the side • Box combinations also possible.
