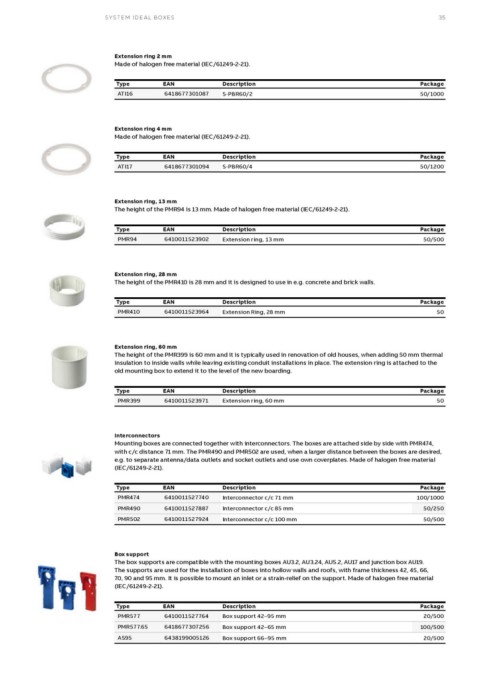

SYSTEM IDEAL BOXES 35

Extension ring 2 mm
Made of halogen free material (IEC/61249-2-21).

Type EAN Description Package
ATI16 6418677301087 S-PBR60/2 50/1000

Extension ring 4 mm
Made of halogen free material (IEC/61249-2-21).

Type EAN Description Package
ATI17 6418677301094 S-PBR60/4 50/1200

Extension ring, 13 mm
The height of the PMR94 is 13 mm. Made of halogen free material (IEC/61249-2-21).

Type EAN Description Package
PMR94 6410011523902 Extension ring, 13 mm 50/500

Extension ring, 28 mm
The height of the PMR410 is 28 mm and it is designed to use in e.g. concrete and brick walls.

Type EAN Description Package
PMR410 6410011523964 Extension Ring, 28 mm 50

Extension ring, 60 mm
The height of the PMR399 is 60 mm and it is typically used in renovation of old houses, when adding 50 mm thermal
insulation to inside walls while leaving existing conduit installations in place. The extension ring is attached to the
old mounting box to extend it to the level of the new boarding.

Type EAN Description Package
PMR399 6410011523971 Extension ring, 60 mm 50

Interconnectors
Mounting boxes are connected together with interconnectors. The boxes are attached side by side with PMR474,
with c/c distance 71 mm. The PMR490 and PMR502 are used, when a larger distance between the boxes are desired,
e.g. to separate antenna/data outlets and socket outlets and use own coverplates. Made of halogen free material
(IEC/61249-2-21).

Type EAN Description Package
PMR474 6410011527740 Interconnector c/c 71 mm 100/1000
PMR490 6410011527887 Interconnector c/c 85 mm
PMR502 6410011527924 Interconnector c/c 100 mm 50/250
50/500

Box support
The box supports are compatible with the mounting boxes AU3.2, AU3.24, AU5.2, AU17 and junction box AU19.
The supports are used for the installation of boxes into hollow walls and roofs, with frame thickness 42, 45, 66,
70, 90 and 95 mm. It is possible to mount an inlet or a strain-relief on the support. Made of halogen free material
(IEC/61249-2-21).

Type EAN Description Package
PMR577 6410011527764 Box support 42–95 mm 20/500
PMR577.65 6418677307256 Box support 42–65 mm
AS95 6438199005126 Box support 66–95 mm 100/500
20/500
