40 INSTALLATION MATERIALS

—

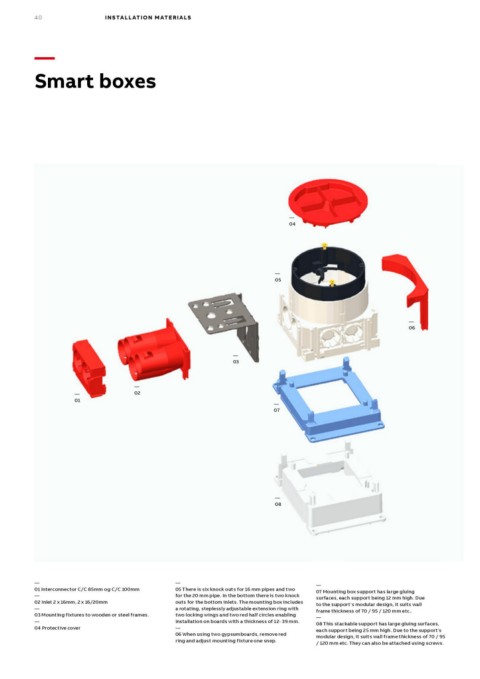

Smart boxes

— —
04 06

— —
— 02 05
01
—
03

—
07

—
08

— — —
01 Interconnector C/C 85mm og C/C 100mm 05 There is six knock outs for 16 mm pipes and two 07 Mounting box support has large gluing
— for the 20 mm pipe. In the bottom there is two knock surfaces, each support being 12 mm high. Due
02 Inlet 2 x 16mm, 2 x 16/20mm outs for the bottom inlets. The mounting box includes to the support's modular design, it suits wall
— a rotating, steplessly adjustable extension ring with frame thickness of 70 / 95 / 120 mm etc..
03 Mounting fixtures to wooden or steel frames. two locking wings and two red half circles enabling —
— installation on boards with a thickness of 12- 39 mm. 08 This stackable support has large gluing surfaces,
04 Protective cover — each support being 25 mm high. Due to the support's
06 When using two gypsumboards, remove red modular design, it suits wall frame thickness of 70 / 95
ring and adjust mounting fixture one snep. / 120 mm etc. They can also be attached using screws.
