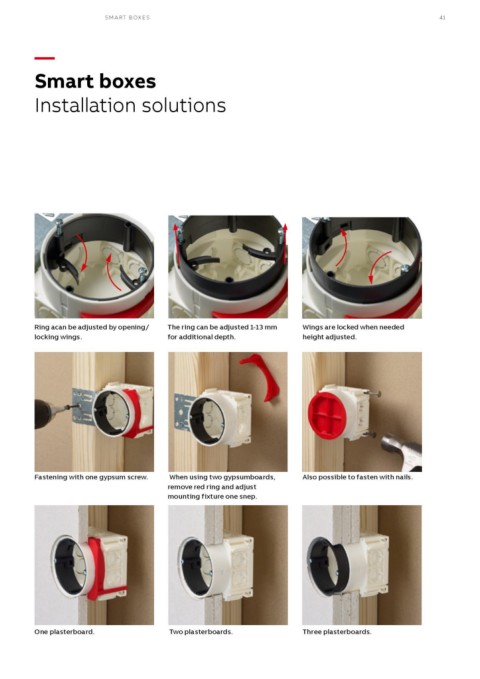

SMART BOXES                                                          41

—
Smart boxes
Installation solutions

Ring acan be adjusted by opening/  The ring can be adjusted 1-13 mm  Wings are locked when needed
locking wings.                     for additional depth.             height adjusted.

Fastening with one gypsum screw.   When using two gypsumboards,      Also possible to fasten with nails.
                                   remove red ring and adjust
                                   mounting fixture one snep.

One plasterboard.                  Two plasterboards.                Three plasterboards.
