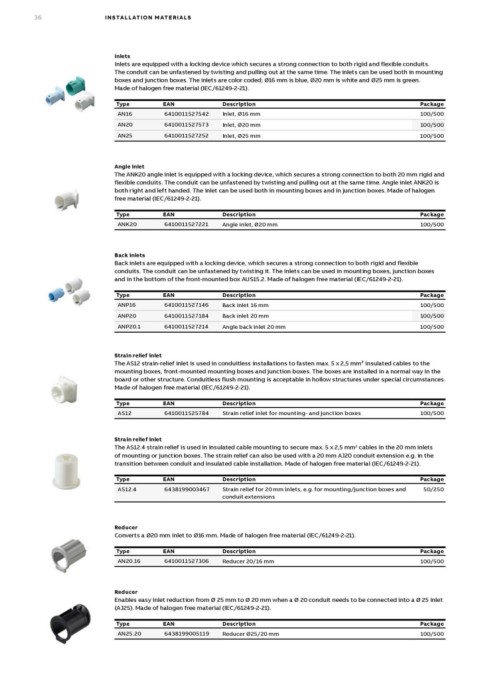

36 INSTALLATION MATERIALS

Inlets
Inlets are equipped with a locking device which secures a strong connection to both rigid and flexible conduits.
The conduit can be unfastened by twisting and pulling out at the same time. The inlets can be used both in mounting
boxes and junction boxes. The inlets are color coded; Ø16 mm is blue, Ø20 mm is white and Ø25 mm is green.
Made of halogen free material (IEC/61249-2-21).

Type EAN Description Package
AN16 6410011527542 Inlet, Ø16 mm 100/500
AN20 6410011527573 Inlet, Ø20 mm 100/500
AN25 6410011527252 Inlet, Ø25 mm 100/500

Angle inlet
The ANK20 angle inlet is equipped with a locking device, which secures a strong connection to both 20 mm rigid and
flexible conduits. The conduit can be unfastened by twisting and pulling out at the same time. Angle inlet ANK20 is
both right and left handed. The inlet can be used both in mounting boxes and in junction boxes. Made of halogen
free material (IEC/61249-2-21).

Type EAN Description Package
ANK20 6410011527221 Angle inlet, Ø20 mm 100/500

Back inlets
Back inlets are equipped with a locking device, which secures a strong connection to both rigid and flexible
conduits. The conduit can be unfastened by twisting it. The inlets can be used in mounting boxes, junction boxes
and in the bottom of the front-mounted box AUS15.2. Made of halogen free material (IEC/61249-2-21).

Type EAN Description Package
ANP16 6410011527146 Back inlet 16 mm 100/500
ANP20 6410011527184 Back inlet 20 mm 100/500
ANP20.1 6410011527214 Angle back inlet 20 mm 100/500

Strain relief inlet
The AS12 strain-relief inlet is used in conduitless installations to fasten max. 5 x 2,5 mm² insulated cables to the
mounting boxes, front-mounted mounting boxes and junction boxes. The boxes are installed in a normal way in the
board or other structure. Conduitless flush mounting is acceptable in hollow structures under special circumstances.
Made of halogen free material (IEC/61249-2-21).

Type EAN Description Package
AS12 6410011525784 Strain relief inlet for mounting- and junction boxes 100/500

Strain relief inlet
The AS12.4 strain relief is used in insulated cable mounting to secure max. 5 x 2,5 mm2 cables in the 20 mm inlets
of mounting or junction boxes. The strain relief can also be used with a 20 mm AJ20 conduit extension e.g. in the
transition between conduit and insulated cable installation. Made of halogen free material (IEC/61249-2-21).

Type EAN Description Package
AS12.4 6438199003467 50/250
Strain relief for 20 mm inlets, e.g. for mounting/junction boxes and
conduit extensions

Reducer
Converts a Ø20 mm inlet to Ø16 mm. Made of halogen free material (IEC/61249-2-21).

Type EAN Description Package
AN20.16 6410011527306 Reducer 20/16 mm 100/500

Reducer
Enables easy inlet reduction from Ø 25 mm to Ø 20 mm when a Ø 20 conduit needs to be connected into a Ø 25 inlet
(AJ25). Made of halogen free material (IEC/61249-2-21).

Type EAN Description Package
AN25.20 6438199005119 Reducer Ø25/20 mm 100/500
