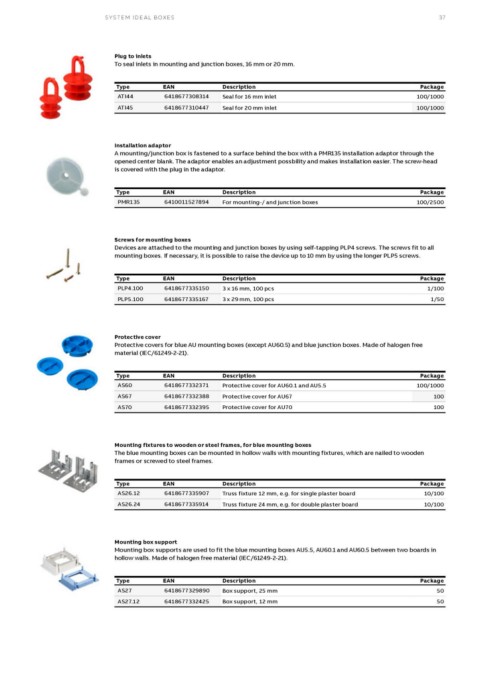

SYSTEM IDEAL BOXES 37
Plug to inlets
To seal inlets in mounting and junction boxes, 16 mm or 20 mm.
Type EAN Description Package
ATI44 6418677308314 Seal for 16 mm inlet 100/1000
Seal for 20 mm inlet 100/1000
ATI45 6418677310447
Installation adaptor
A mounting/junction box is fastened to a surface behind the box with a PMR135 installation adaptor through the
opened center blank. The adaptor enables an adjustment possbility and makes installation easier. The screw-head
is covered with the plug in the adaptor.
Type EAN Description Package
PMR135 6410011527894 For mounting-/ and junction boxes 100/2500
Screws for mounting boxes
Devices are attached to the mounting and junction boxes by using self-tapping PLP4 screws. The screws fit to all
mounting boxes. If necessary, it is possible to raise the device up to 10 mm by using the longer PLP5 screws.
Type EAN Description Package
PLP4.100 6418677335150 3 x 16 mm, 100 pcs 1/100
PLP5.100 6418677335167 3 x 29 mm, 100 pcs 1/50
Protective cover
Protective covers for blue AU mounting boxes (except AU60.5) and blue junction boxes. Made of halogen free
material (IEC/61249-2-21).
Type EAN Description Package
AS60 6418677332371 Protective cover for AU60.1 and AU5.5 100/1000
AS67 6418677332388 Protective cover for AU67
AS70 6418677332395 Protective cover for AU70 100
100
Mounting fixtures to wooden or steel frames, for blue mounting boxes
The blue mounting boxes can be mounted in hollow walls with mounting fixtures, which are nailed to wooden
frames or screwed to steel frames.
Type EAN Description Package
AS26.12 6418677335907 Truss fixture 12 mm, e.g. for single plaster board 10/100
AS26.24 6418677335914 Truss fixture 24 mm, e.g. for double plaster board 10/100
Mounting box support
Mounting box supports are used to fit the blue mounting boxes AU5.5, AU60.1 and AU60.5 between two boards in
hollow walls. Made of halogen free material (IEC/61249-2-21).
Type EAN Description Package
AS27 6418677329890 Box support, 25 mm 50
AS27.12 6418677332425 Box support, 12 mm 50
