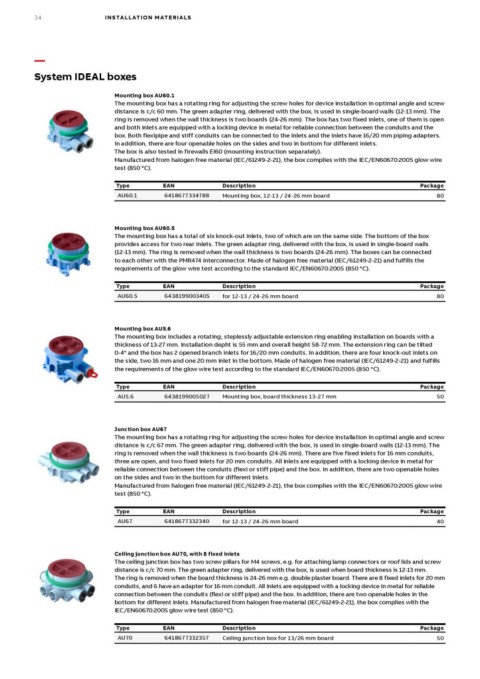

34 INSTALLATION MATERIALS

—
System IDEAL boxes

Mounting box AU60.1
The mounting box has a rotating ring for adjusting the screw holes for device installation in optimal angle and screw
distance is c/c 60 mm. The green adapter ring, delivered with the box, is used in single-board walls (12-13 mm). The
ring is removed when the wall thickness is two boards (24-26 mm). The box has two fixed inlets, one of them is open
and both inlets are equipped with a locking device in metal for reliable connection between the conduits and the
box. Both flexipipe and stiff conduits can be connected to the inlets and the inlets have 16/20 mm piping adapters.
In addition, there are four openable holes on the sides and two in bottom for different inlets.
The box is also tested in firewalls EI60 (mounting instruction separately).
Manufactured from halogen free material (IEC/61249-2-21), the box complies with the IEC/EN60670:2005 glow wire
test (850 °C).

Type EAN Description Package
AU60.1 6418677334788 Mounting box, 12-13 / 24-26 mm board 80

Mounting box AU60.5
The mounting box has a total of six knock-out inlets, two of which are on the same side. The bottom of the box
provides access for two rear inlets. The green adapter ring, delivered with the box, is used in single-board walls
(12-13 mm). The ring is removed when the wall thickness is two boards (24-26 mm). The boxes can be connected
to each other with the PMR474 interconnector. Made of halogen free material (IEC/61249-2-21) and fulfills the
requirements of the glow wire test according to the standard IEC/EN60670:2005 (850 °C).

Type EAN Description Package
AU60.5 6438199003405 for 12-13 / 24-26 mm board 80

Mounting box AU5.6
The mounting box includes a rotating, steplessly adjustable extension ring enabling installation on boards with a
thickness of 13-27 mm. Installation depht is 55 mm and overall height 58-72 mm. The extension ring can be tilted
0-4° and the box has 2 opened branch inlets for 16/20 mm conduits. In addition, there are four knock-out inlets on
the side, two 16 mm and one 20 mm inlet in the bottom. Made of halogen free material (IEC/61249-2-21) and fulfills
the requirements of the glow wire test according to the standard IEC/EN60670:2005 (850 °C).

Type EAN Description Package
AU5.6 6438199005027 Mounting box, board thickness 13-27 mm 50

Junction box AU67
The mounting box has a rotating ring for adjusting the screw holes for device installation in optimal angle and screw
distance is c/c 67 mm. The green adapter ring, delivered with the box, is used in single-board walls (12-13 mm). The
ring is removed when the wall thickness is two boards (24-26 mm). There are five fixed inlets for 16 mm conduits,
three are open, and two fixed inlets for 20 mm conduits. All inlets are equipped with a locking device in metal for
reliable connection between the conduits (flexi or stiff pipe) and the box. In addition, there are two openable holes
on the sides and two in the bottom for different inlets.
Manufactured from halogen free material (IEC/61249-2-21), the box complies with the IEC/EN60670:2005 glow wire
test (850 °C).

Type EAN Description Package
AU67 6418677332340 for 12-13 / 24-26 mm board 40

Ceiling junction box AU70, with 8 fixed inlets
The ceiling junction box has two screw pillars for M4 screws, e.g. for attaching lamp connectors or roof lids and screw
distance is c/c 70 mm. The green adapter ring, delivered with the box, is used when board thickness is 12-13 mm.
The ring is removed when the board thickness is 24-26 mm e.g. double plaster board. There are 8 fixed inlets for 20 mm
conduits, and 6 have an adapter for 16 mm conduit. All inlets are equipped with a locking device in metal for reliable
connection between the conduits (flexi or stiff pipe) and the box. In addition, there are two openable holes in the
bottom for different inlets. Manufactured from halogen free material (IEC/61249-2-21), the box complies with the
IEC/EN60670:2005 glow wire test (850 °C).

Type EAN Description Package
AU70 6418677332357 Ceiling junction box for 13/26 mm board 50
