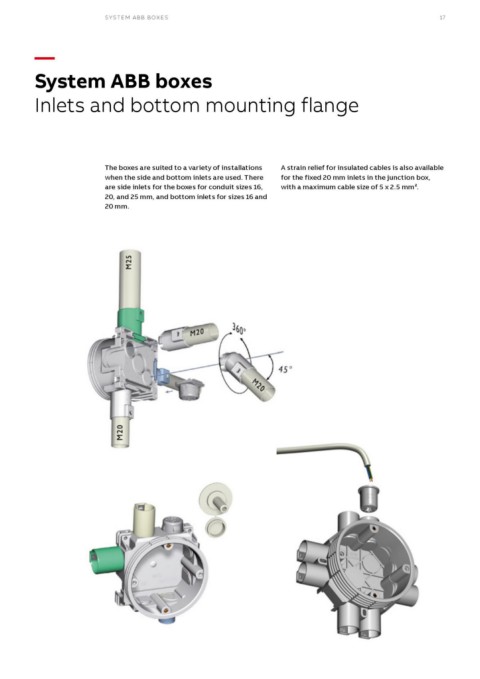

SYSTEM ABB BOXES  17

—
System ABB boxes
Inlets and bottom mounting flange

The boxes are suited to a variety of installations   A strain relief for insulated cables is also available
when the side and bottom inlets are used. There      for the fixed 20 mm inlets in the junction box,
are side inlets for the boxes for conduit sizes 16,  with a maximum cable size of 5 x 2.5 mm².
20, and 25 mm, and bottom inlets for sizes 16 and
20 mm.
