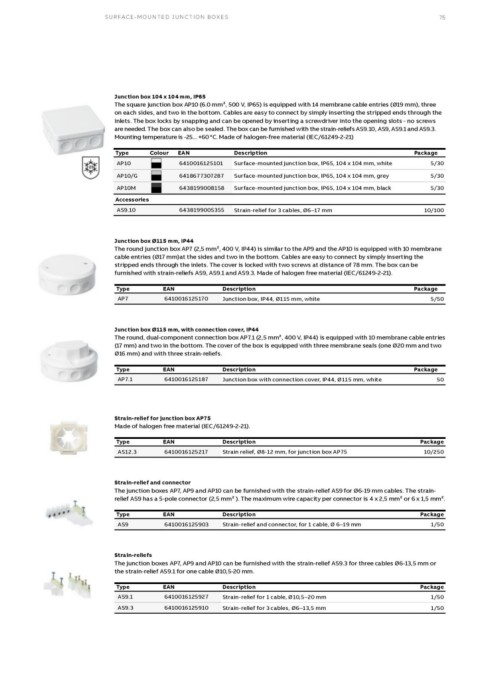

SURFACE-MOUNTED JUNCTION BOXES 75

Junction box 104 x 104 mm, IP65
The square junction box AP10 (6.0 mm², 500 V, IP65) is equipped with 14 membrane cable entries (Ø19 mm), three
on each sides, and two in the bottom. Cables are easy to connect by simply inserting the stripped ends through the
inlets. The box locks by snapping and can be opened by inserting a screwdriver into the opening slots - no screws
are needed. The box can also be sealed. The box can be furnished with the strain-reliefs AS9.10, AS9, AS9.1 and AS9.3.
Mounting temperature is -25... +60 °C. Made of halogen-free material (IEC/61249-2-21)

Type Colour EAN Description Package
AP10 6410016125101 Surface-mounted junction box, IP65, 104 x 104 mm, white 5/30
6418677307287 Surface-mounted junction box, IP65, 104 x 104 mm, grey 5/30
AP10/G 6438199008158 Surface-mounted junction box, IP65, 104 x 104 mm, black 5/30

AP10M 6438199005355 Strain-relief for 3 cables, Ø6–17 mm 10/100
Accessories
AS9.10

Junction box Ø115 mm, IP44
The round junction box AP7 (2,5 mm², 400 V, IP44) is similar to the AP9 and the AP10 is equipped with 10 membrane
cable entries (Ø17 mm)at the sides and two in the bottom. Cables are easy to connect by simply inserting the
stripped ends through the inlets. The cover is locked with two screws at distance of 78 mm. The box can be
furnished with strain-reliefs AS9, AS9.1 and AS9.3. Made of halogen free material (IEC/61249-2-21).

Type EAN Description Package
AP7 6410016125170 Junction box, IP44, Ø115 mm, white 5/50

Junction box Ø115 mm, with connection cover, IP44
The round, dual-component connection box AP7.1 (2,5 mm², 400 V, IP44) is equipped with 10 membrane cable entries
(17 mm) and two in the bottom. The cover of the box is equipped with three membrane seals (one Ø20 mm and two
Ø16 mm) and with three strain-reliefs.

Type EAN Description Package
AP7.1 6410016125187 Junction box with connection cover, IP44, Ø115 mm, white 50

Strain-relief for junction box AP75
Made of halogen free material (IEC/61249-2-21).

Type EAN Description Package
AS12.3 6410016125217 Strain relief, Ø8-12 mm, for junction box AP75 10/250

Strain-relief and connector
The junction boxes AP7, AP9 and AP10 can be furnished with the strain-relief AS9 for Ø6-19 mm cables. The strain-
relief AS9 has a 5-pole connector (2,5 mm² ). The maximum wire capacity per connector is 4 x 2,5 mm² or 6 x 1,5 mm².

Type EAN Description Package
AS9 6410016125903 Strain-relief and connector, for 1 cable, Ø 6–19 mm 1/50

Strain-reliefs
The junction boxes AP7, AP9 and AP10 can be furnished with the strain-relief AS9.3 for three cables Ø6-13,5 mm or
the strain-relief AS9.1 for one cable Ø10,5-20 mm.

Type EAN Description Package
AS9.1 6410016125927 Strain-relief for 1 cable, Ø10,5–20 mm 1/50
AS9.3 6410016125910 Strain-relief for 3 cables, Ø6–13,5 mm 1/50
