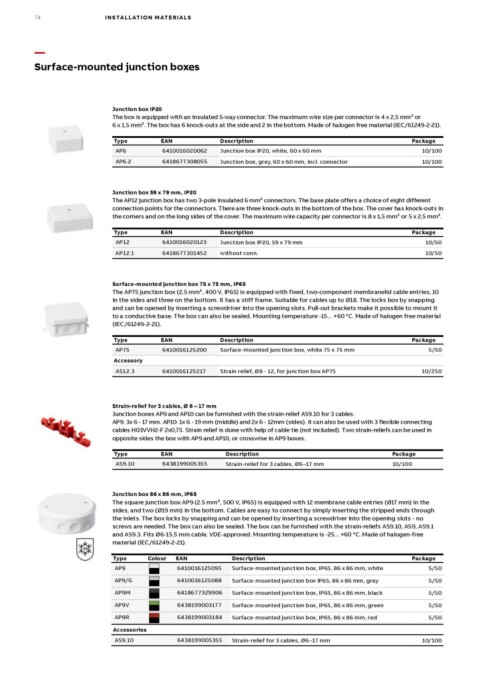

Surface-mounted junction boxes


Junction box IP20
The box is equipped with an insulated 5-way connector. The maximum wire size per connector is 4 x 2,5 mm² or
6 x 1,5 mm². The box has 6 knock-outs at the side and 2 in the bottom. Made of halogen free material (IEC/61249-2-21).

Type EAN Description Package
AP6 6410016020062 Junction box IP20, white, 60 x 60 mm 10/100
AP6.2 6418677308055 Junction box, grey, 60 x 60 mm, incl. connector 10/100

Junction box 59 x 79 mm, IP20
The AP12 junction box has two 3-pole insulated 6 mm² connectors. The base plate offers a choice of eight different
connection points for the connectors. There are three knock-outs in the bottom of the box. The cover has knock-outs in
the corners and on the long sides of the cover. The maximum wire capacity per connector is 8 x 1,5 mm² or 5 x 2,5 mm².

Type EAN Description Package
AP12 6410016020123 Junction box IP20, 59 x 79 mm 10/50
AP12.1 6418677301452 without conn. 10/50

Surface-mounted junction box 75 x 75 mm, IP65
The AP75 junction box (2,5 mm², 400 V, IP65) is equipped with fixed, two-component membranelid cable entries, 10
in the sides and three on the bottom. It has a stiff frame. Suitable for cables up to Ø18. The locks box by snapping
and can be opened by inserting a screwdriver into the opening slots. Pull-out brackets make it possible to mount it
to a conductive base. The box can also be sealed. Mounting temperature -15... +60 °C. Made of halogen free material
(IEC/61249-2-21).

Type EAN Description Package
AP75 6410016125200 Surface-mounted junction box, white 75 x 75 mm 5/50
Accessory
AS12.3 6410016125217 Strain relief, Ø8 - 12, for junction box AP75 10/250

Strain-relief for 3 cables, Ø 6 – 17 mm
Junction boxes AP9 and AP10 can be furnished with the strain-relief AS9.10 for 3 cables.
AP9: 3x 6 - 17 mm. AP10: 1x 6 - 19 mm (middle) and 2x 6 - 12mm (sides). It can also be used with 3 flexible connecting
cables H03VVH2-F 2x0,75. Strain relief is done with help of cable tie (not included). Two strain-reliefs can be used in
opposite sides the box with AP9 and AP10, or crosswise in AP9 boxes.

Type EAN Description Package
AS9.10 6438199005355 Strain-relief for 3 cables, Ø6–17 mm 10/100

Junction box 86 x 86 mm, IP65
The square junction box AP9 (2.5 mm², 500 V, IP65) is equipped with 12 membrane cable entries (Ø17 mm) in the
sides, and two (Ø19 mm) in the bottom. Cables are easy to connect by simply inserting the stripped ends through
the inlets. The box locks by snapping and can be opened by inserting a screwdriver into the opening slots - no
screws are needed. The box can also be sealed. The box can be furnished with the strain-reliefs AS9.10, AS9, AS9.1
and AS9.3. Fits Ø6-15.5 mm cable. VDE-approved. Mounting temperature is -25... +60 °C. Made of halogen-free
material (IEC/61249-2-21).

Type Colour EAN Description Package
AP9 6410016125095 Surface-mounted junction box, IP65, 86 x 86 mm, white 5/50
6410016125088 Surface-mounted junction box IP65, 86 x 86 mm, grey 5/50
AP9/G 6418677329906 Surface-mounted junction box, IP65, 86 x 86 mm, black 5/50
6438199003177 Surface-mounted junction box, IP65, 86 x 86 mm, green 5/50
AP9M 6438199003184 Surface-mounted junction box, IP65, 86 x 86 mm, red 5/50

AP9V 6438199005355 Strain-relief for 3 cables, Ø6–17 mm 10/100

AP9R

Accessories
AS9.10
