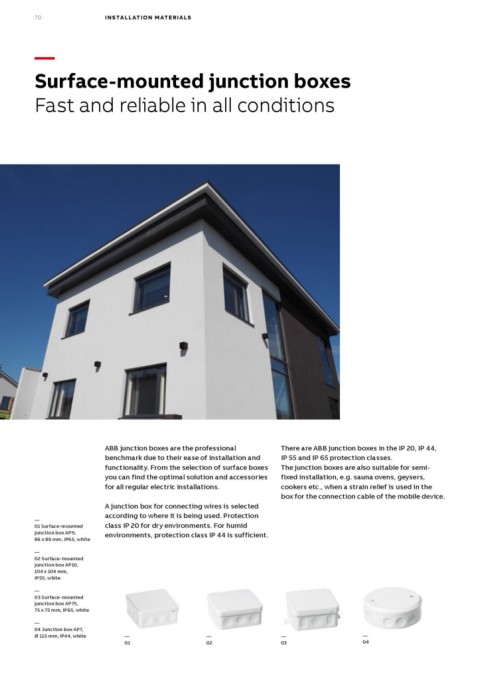

70 INSTALLATION MATERIALS

—
Surface-mounted junction boxes
Fast and reliable in all conditions

ABB junction boxes are the professional There are ABB junction boxes in the IP 20, IP 44,
benchmark due to their ease of installation and IP 55 and IP 65 protection classes.
functionality. From the selection of surface boxes The junction boxes are also suitable for semi-
you can find the optimal solution and accessories fixed installation, e.g. sauna ovens, geysers,
for all regular electric installations. cookers etc., when a strain relief is used in the
box for the connection cable of the mobile device.
A junction box for connecting wires is selected
— according to where it is being used. Protection
01 Surface-mounted class IP 20 for dry environments. For humid
junction box AP9, environments, protection class IP 44 is sufficient.
86 x 86 mm, IP65, white
— —— —
— 01 02 03 04
02 Surface-mounted
junction box AP10,
104 x 104 mm,
IP55, white

—
03 Surface-mounted
junction box AP75,
75 x 75 mm, IP65, white

—
04 Junction box AP7,
Ø 115 mm, IP44, white
