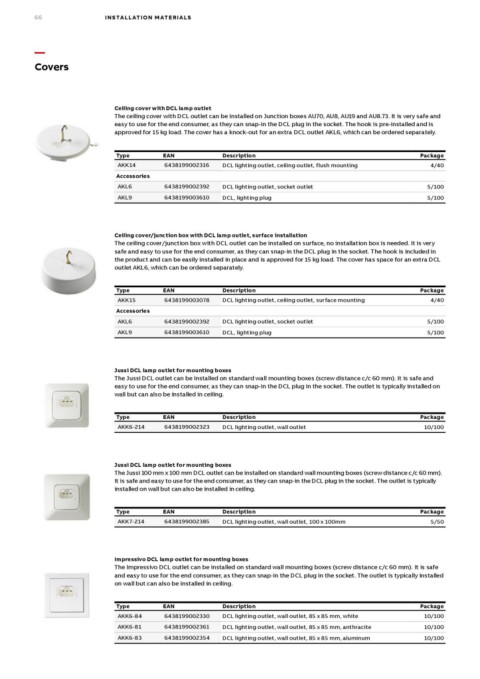

Page 66 - ABB_Installation_materials_catalog_EN

66 INSTALLATION MATERIALS

—
Covers


Ceiling cover with DCL lamp outlet
The ceiling cover with DCL outlet can be installed on Junction boxes AU70, AU8, AU19 and AU8.73. It is very safe and
easy to use for the end consumer, as they can snap-in the DCL plug in the socket. The hook is pre-installed and is
approved for 15 kg load. The cover has a knock-out for an extra DCL outlet AKL6, which can be ordered separately.

Type EAN Description Package
AKK14 6438199002316 DCL lighting outlet, ceiling outlet, flush mounting 4/40
Accessories
AKL6 6438199002392 DCL lighting outlet, socket outlet 5/100
AKL9 6438199003610 DCL, lighting plug 5/100

Ceiling cover/junction box with DCL lamp outlet, surface installation
The ceiling cover/junction box with DCL outlet can be installed on surface, no installation box is needed. It is very
safe and easy to use for the end consumer, as they can snap-in the DCL plug in the socket. The hook is included in
the product and can be easily installed in place and is approved for 15 kg load. The cover has space for an extra DCL
outlet AKL6, which can be ordered separately.

Type EAN Description Package
AKK15 6438199003078 DCL lighting outlet, ceiling outlet, surface mounting 4/40
Accessories
AKL6 6438199002392 DCL lighting outlet, socket outlet 5/100
AKL9 6438199003610 DCL, lighting plug 5/100

Jussi DCL lamp outlet for mounting boxes
The Jussi DCL outlet can be installed on standard wall mounting boxes (screw distance c/c 60 mm). It is safe and
easy to use for the end consumer, as they can snap-in the DCL plug in the socket. The outlet is typically installed on
wall but can also be installed in ceiling.

Type EAN Description Package
AKK6-214 6438199002323 DCL lighting outlet, wall outlet 10/100

Jussi DCL lamp outlet for mounting boxes
The Jussi 100 mm x 100 mm DCL outlet can be installed on standard wall mounting boxes (screw distance c/c 60 mm).
It is safe and easy to use for the end consumer, as they can snap-in the DCL plug in the socket. The outlet is typically
installed on wall but can also be installed in ceiling.

Type EAN Description Package
AKK7-214 6438199002385 DCL lighting outlet, wall outlet, 100 x 100mm 5/50

Impressivo DCL lamp outlet for mounting boxes
The Impressivo DCL outlet can be installed on standard wall mounting boxes (screw distance c/c 60 mm). It is safe
and easy to use for the end consumer, as they can snap-in the DCL plug in the socket. The outlet is typically installed
on wall but can also be installed in ceiling.

Type EAN Description Package
AKK6-84 6438199002330 DCL lighting outlet, wall outlet, 85 x 85 mm, white 10/100
AKK6-81 6438199002361 DCL lighting outlet, wall outlet, 85 x 85 mm, anthracite 10/100
AKK6-83 6438199002354 DCL lighting outlet, wall outlet, 85 x 85 mm, aluminum 10/100
