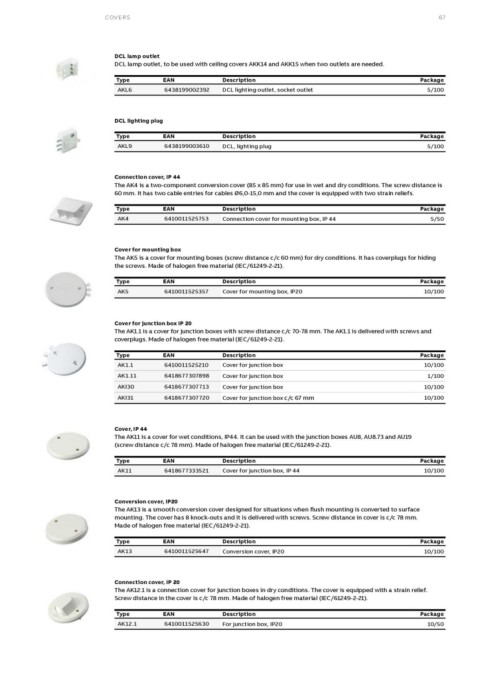

COVERS 67

DCL lamp outlet
DCL lamp outlet, to be used with ceiling covers AKK14 and AKK15 when two outlets are needed.

Type EAN Description Package
AKL6 6438199002392 DCL lighting outlet, socket outlet 5/100

DCL lighting plug

Type EAN Description Package
AKL9 6438199003610 DCL, lighting plug 5/100

Connection cover, IP 44
The AK4 is a two-component conversion cover (85 x 85 mm) for use in wet and dry conditions. The screw distance is
60 mm. It has two cable entries for cables Ø6,0-15,0 mm and the cover is equipped with two strain reliefs.

Type EAN Description Package
AK4 6410011525753 Connection cover for mounting box, IP 44 5/50

Cover for mounting box
The AK5 is a cover for mounting boxes (screw distance c/c 60 mm) for dry conditions. It has coverplugs for hiding
the screws. Made of halogen free material (IEC/61249-2-21).

Type EAN Description Package
AK5 6410011525357 Cover for mounting box, IP20 10/100

Cover for junction box IP 20
The AK1.1 is a cover for junction boxes with screw distance c/c 70-78 mm. The AK1.1 is delivered with screws and
coverplugs. Made of halogen free material (IEC/61249-2-21).

Type EAN Description Package
AK1.1 6410011525210 Cover for junction box 10/100
AK1.11 6418677307898 Cover for junction box 1/100
AKI30 6418677307713 Cover for junction box 10/100
AKI31 6418677307720 Cover for junction box c/c 67 mm 10/100

Cover, IP 44
The AK11 is a cover for wet conditions, IP44. It can be used with the junction boxes AU8, AU8.73 and AU19
(screw distance c/c 78 mm). Made of halogen free material (IEC/61249-2-21).

Type EAN Description Package
AK11 6418677333521 Cover for junction box, IP 44 10/100

Conversion cover, IP20
The AK13 is a smooth conversion cover designed for situations when flush mounting is converted to surface
mounting. The cover has 8 knock-outs and it is delivered with screws. Screw distance in cover is c/c 78 mm.
Made of halogen free material (IEC/61249-2-21).

Type EAN Description Package
AK13 6410011525647 Conversion cover, IP20 10/100

Connection cover, IP 20
The AK12.1 is a connection cover for junction boxes in dry conditions. The cover is equipped with a strain relief.
Screw distance in the cover is c/c 78 mm. Made of halogen free material (IEC/61249-2-21).

Type EAN Description Package
AK12.1 6410011525630 For junction box, IP20 10/50
