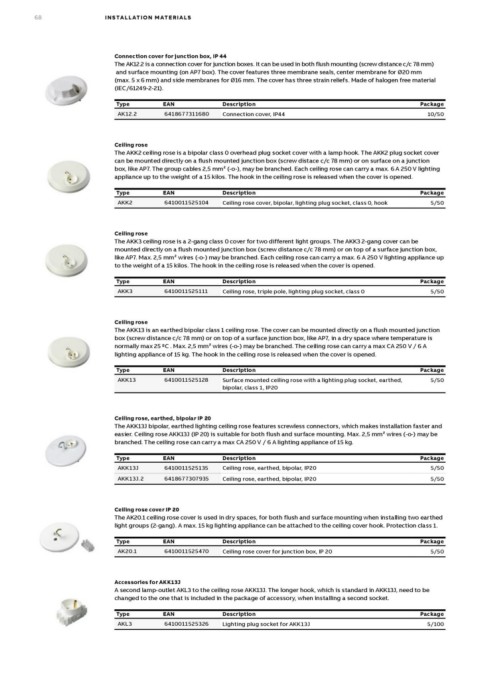

68 INSTALLATION MATERIALS

Connection cover for junction box, IP 44
The AK12.2 is a connection cover for junction boxes. It can be used in both flush mounting (screw distance c/c 78 mm)
and surface mounting (on AP7 box). The cover features three membrane seals, center membrane for Ø20 mm
(max. 5 x 6 mm) and side membranes for Ø16 mm. The cover has three strain reliefs. Made of halogen free material
(IEC/61249-2-21).

Type EAN Description Package
AK12.2 6418677311680 Connection cover, IP44 10/50

Ceiling rose
The AKK2 ceiling rose is a bipolar class 0 overhead plug socket cover with a lamp hook. The AKK2 plug socket cover
can be mounted directly on a flush mounted junction box (screw distace c/c 78 mm) or on surface on a junction
box, like AP7. The group cables 2,5 mm² (-o-), may be branched. Each ceiling rose can carry a max. 6 A 250 V lighting
appliance up to the weight of a 15 kilos. The hook in the ceiling rose is released when the cover is opened.

Type EAN Description Package
AKK2 6410011525104 Ceiling rose cover, bipolar, lighting plug socket, class 0, hook 5/50

Ceiling rose
The AKK3 ceiling rose is a 2-gang class 0 cover for two different light groups. The AKK3 2-gang cover can be
mounted directly on a flush mounted junction box (screw distance c/c 78 mm) or on top of a surface junction box,
like AP7. Max. 2,5 mm² wires (-o-) may be branched. Each ceiling rose can carry a max. 6 A 250 V lighting appliance up
to the weight of a 15 kilos. The hook in the ceiling rose is released when the cover is opened.

Type EAN Description Package
AKK3 6410011525111 Ceiling rose, triple pole, lighting plug socket, class 0 5/50

Ceiling rose
The AKK13 is an earthed bipolar class 1 ceiling rose. The cover can be mounted directly on a flush mounted junction
box (screw distance c/c 78 mm) or on top of a surface junction box, like AP7, in a dry space where temperature is
normally max 25 ºC . Max. 2,5 mm² wires (-o-) may be branched. The ceiling rose can carry a max CA 250 V / 6 A
lighting appliance of 15 kg. The hook in the ceiling rose is released when the cover is opened.

Type EAN Description Package
AKK13 6410011525128 5/50
Surface mounted ceiling rose with a lighting plug socket, earthed,
bipolar, class 1, IP20

Ceiling rose, earthed, bipolar IP 20
The AKK13J bipolar, earthed lighting ceiling rose features screwless connectors, which makes installation faster and
easier. Ceiling rose AKK13J (IP 20) is suitable for both flush and surface mounting. Max. 2,5 mm² wires (-o-) may be
branched. The ceiling rose can carry a max CA 250 V / 6 A lighting appliance of 15 kg.

Type EAN Description Package
AKK13J 6410011525135 Ceiling rose, earthed, bipolar, IP20 5/50
AKK13J.2 6418677307935 Ceiling rose, earthed, bipolar, IP20 5/50

Ceiling rose cover IP 20
The AK20.1 ceiling rose cover is used in dry spaces, for both flush and surface mounting when installing two earthed
light groups (2-gang). A max. 15 kg lighting appliance can be attached to the ceiling cover hook. Protection class 1.

Type EAN Description Package
AK20.1 6410011525470 Ceiling rose cover for junction box, IP 20 5/50

Accessories for AKK13J
A second lamp-outlet AKL3 to the ceiling rose AKK13J. The longer hook, which is standard in AKK13J, need to be
changed to the one that is included in the package of accessory, when installing a second socket.

Type EAN Description Package
AKL3 6410011525326 Lighting plug socket for AKK13J 5/100
