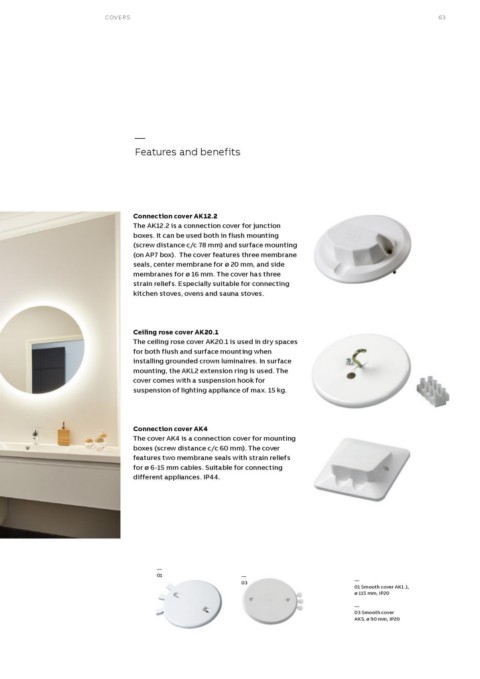

Page 63 - ABB_Installation_materials_catalog_EN

COVERS 63

—
Features and benefits

Connection cover AK12.2
The AK12.2 is a connection cover for junction
boxes. It can be used both in flush mounting
(screw distance c/c 78 mm) and surface mounting
(on AP7 box). The cover features three membrane
seals, center membrane for ø 20 mm, and side
membranes for ø 16 mm. The cover has three
strain reliefs. Especially suitable for connecting
kitchen stoves, ovens and sauna stoves.

Ceiling rose cover AK20.1
The ceiling rose cover AK20.1 is used in dry spaces
for both flush and surface mounting when
installing grounded crown luminaires. In surface
mounting, the AKL2 extension ring is used. The
cover comes with a suspension hook for
suspension of lighting appliance of max. 15 kg.

Connection cover AK4
The cover AK4 is a connection cover for mounting
boxes (screw distance c/c 60 mm). The cover
features two membrane seals with strain reliefs
for ø 6-15 mm cables. Suitable for connecting
different appliances. IP44.

— —
01 — 01 Smooth cover AK1.1,
ø 115 mm, IP20
03
—
03 Smooth cover
AK5, ø 90 mm, IP20
