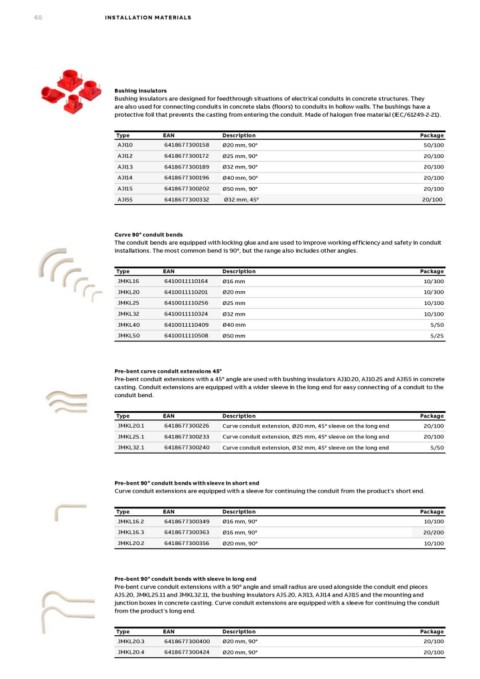

60 INSTALLATION MATERIALS

Bushing insulators
Bushing insulators are designed for feedthrough situations of electrical conduits in concrete structures. They
are also used for connecting conduits in concrete slabs (floors) to conduits in hollow walls. The bushings have a
protective foil that prevents the casting from entering the conduit. Made of halogen free material (IEC/61249-2-21).

Type EAN Description Package
AJI10 6418677300158 Ø20 mm, 90° 50/100
AJI12 6418677300172 Ø25 mm, 90° 20/100
AJI13 6418677300189 Ø32 mm, 90° 20/100
AJI14 6418677300196 Ø40 mm, 90° 20/100
AJI15 6418677300202 Ø50 mm, 90° 20/100
AJI55 6418677300332 Ø32 mm, 45° 20/100

Curve 90° conduit bends
The conduit bends are equipped with locking glue and are used to improve working efficiency and safety in conduit
installations. The most common bend is 90°, but the range also includes other angles.

Type EAN Description Package
JMKL16 6410011110164 Ø16 mm 10/300
JMKL20 6410011110201 Ø20 mm 10/300
JMKL25 6410011110256 Ø25 mm 10/100
JMKL32 6410011110324 Ø32 mm 10/100
JMKL40 6410011110409 Ø40 mm 5/50
JMKL50 6410011110508 Ø50 mm 5/25

Pre-bent curve conduit extensions 45°
Pre-bent conduit extensions with a 45° angle are used with bushing insulators AJ10.20, AJ10.25 and AJI55 in concrete
casting. Conduit extensions are equipped with a wider sleeve in the long end for easy connecting of a conduit to the
conduit bend.

Type EAN Description Package
JMKL20.1 6418677300226 Curve conduit extension, Ø20 mm, 45° sleeve on the long end 20/100
JMKL25.1 6418677300233 Curve conduit extension, Ø25 mm, 45° sleeve on the long end 20/100
JMKL32.1 6418677300240 Curve conduit extension, Ø32 mm, 45° sleeve on the long end 5/50

Pre-bent 90° conduit bends with sleeve in short end
Curve conduit extensions are equipped with a sleeve for continuing the conduit from the product's short end.

Type EAN Description Package
JMKL16.2 6418677300349 Ø16 mm, 90° 10/100
JMKL16.3 6418677300363 Ø16 mm, 90° 20/200
JMKL20.2 6418677300356 Ø20 mm, 90° 10/100

Pre-bent 90° conduit bends with sleeve in long end
Pre-bent curve conduit extensions with a 90° angle and small radius are used alongside the conduit end pieces
AJ5.20, JMKL25.11 and JMKL32.11, the bushing insulators AJ5.20, AJI13, AJI14 and AJI15 and the mounting and
junction boxes in concrete casting. Curve conduit extensions are equipped with a sleeve for continuing the conduit
from the product's long end.

Type EAN Description Package
JMKL20.3 6418677300400 Ø20 mm, 90° 20/100
JMKL20.4 6418677300424 Ø20 mm, 90° 20/100
