SYSTEM ABB BOXES 55
—

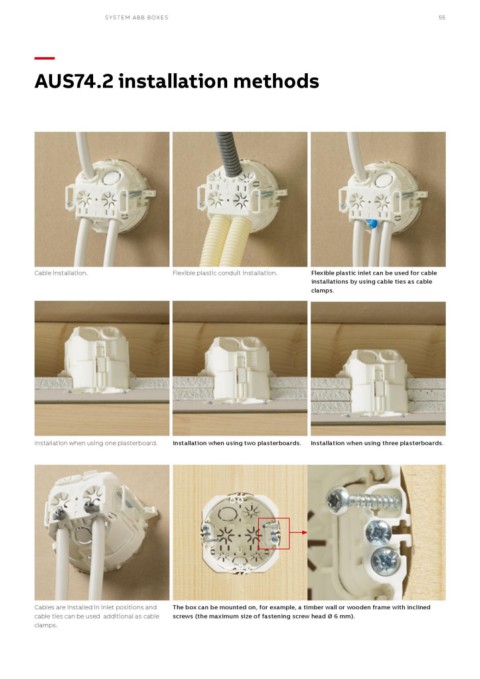

AUS74.2 installation methods
Cable installation. Flexible plastic conduit installation. Flexible plastic inlet can be used for cable
installations by using cable ties as cable
clamps.
Installation when using one plasterboard. Installation when using two plasterboards. Installation when using three plasterboards.
Cables are installed in inlet positions and The box can be mounted on, for example, a timber wall or wooden frame with inclined
cable ties can be used additional as cable screws (the maximum size of fastening screw head Ø 6 mm).
clamps.
