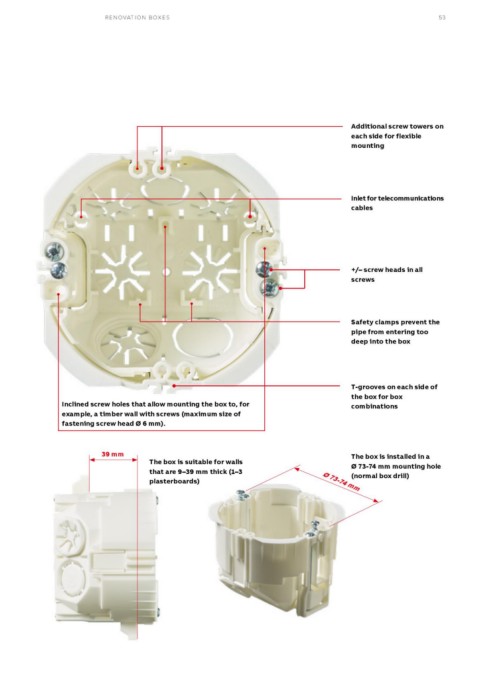

RENOVATION BOXES 53
Additional screw towers on
each side for flexible
mounting
Inlet for telecommunications
cables
Inclined screw holes that allow mounting the box to, for +/– screw heads in all
example, a timber wall with screws (maximum size of screws
fastening screw head Ø 6 mm).
Safety clamps prevent the
pipe from entering too
deep into the box
T-grooves on each side of
the box for box
combinations
39 mm The box is suitable for walls The box is installed in a
that are 9–39 mm thick (1–3
plasterboards) Ø Ø 73-74 mm mounting hole
73-74 (normal box drill)
mm
