RENOVATION BOXES 51

—

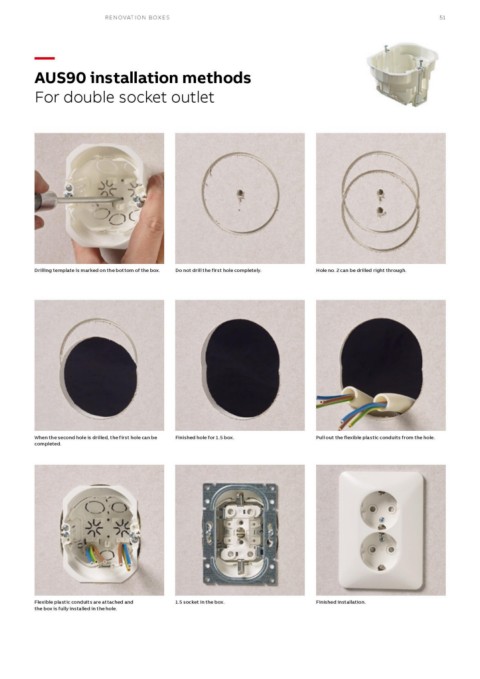

AUS90 installation methods
For double socket outlet

Drilling template is marked on the bottom of the box. Do not drill the first hole completely. Hole no. 2 can be drilled right through.

When the second hole is drilled, the first hole can be Finished hole for 1.5 box. Pull out the flexible plastic conduits from the hole.
completed.

Flexible plastic conduits are attached and 1.5 socket in the box. Finished installation.
the box is fully installed in the hole.
