50 INSTALLATION MATERIALS
—

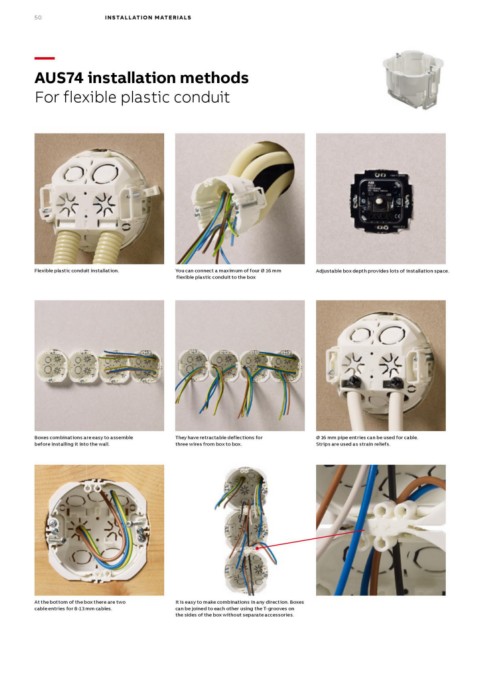

AUS74 installation methods
For flexible plastic conduit
Flexible plastic conduit installation. You can connect a maximum of four Ø 16 mm Adjustable box depth provides lots of installation space.
flexible plastic conduit to the box
Boxes combinations are easy to assemble They have retractable deflections for Ø 16 mm pipe entries can be used for cable.
before installing it into the wall. three wires from box to box. Strips are used as strain reliefs.
At the bottom of the box there are two It is easy to make combinations in any direction. Boxes
cable entries for 8-13 mm cables. can be joined to each other using the T-grooves on
the sides of the box without separate accessories.
