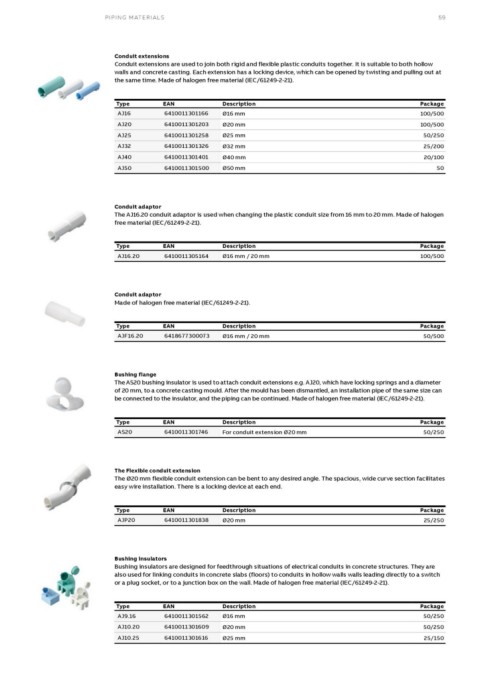

PIPING MATERIALS 59
Conduit extensions
Conduit extensions are used to join both rigid and flexible plastic conduits together. It is suitable to both hollow
walls and concrete casting. Each extension has a locking device, which can be opened by twisting and pulling out at
the same time. Made of halogen free material (IEC/61249-2-21).
Type EAN Description Package
AJ16 6410011301166 Ø16 mm 100/500
AJ20 6410011301203 Ø20 mm 100/500
AJ25 6410011301258 Ø25 mm
AJ32 6410011301326 Ø32 mm 50/250
AJ40 6410011301401 Ø40 mm 25/200
AJ50 6410011301500 Ø50 mm 20/100
50
Conduit adaptor
The AJ16.20 conduit adaptor is used when changing the plastic conduit size from 16 mm to 20 mm. Made of halogen
free material (IEC/61249-2-21).
Type EAN Description Package
AJ16.20 6410011305164 Ø16 mm / 20 mm 100/500
Conduit adaptor
Made of halogen free material (IEC/61249-2-21).
Type EAN Description Package
AJF16.20 6418677300073 Ø16 mm / 20 mm 50/500
Bushing flange
The AS20 bushing insulator is used to attach conduit extensions e.g. AJ20, which have locking springs and a diameter
of 20 mm, to a concrete casting mould. After the mould has been dismantled, an installation pipe of the same size can
be connected to the insulator, and the piping can be continued. Made of halogen free material (IEC/61249-2-21).
Type EAN Description Package
AS20 6410011301746 For conduit extension Ø20 mm 50/250
The Flexible conduit extension
The Ø20 mm flexible conduit extension can be bent to any desired angle. The spacious, wide curve section facilitates
easy wire installation. There is a locking device at each end.
Type EAN Description Package
AJP20 6410011301838 Ø20 mm 25/250
Bushing insulators
Bushing insulators are designed for feedthrough situations of electrical conduits in concrete structures. They are
also used for linking conduits in concrete slabs (floors) to conduits in hollow walls walls leading directly to a switch
or a plug socket, or to a junction box on the wall. Made of halogen free material (IEC/61249-2-21).
Type EAN Description Package
AJ9.16 6410011301562 Ø16 mm 50/250
AJ10.20 6410011301609 Ø20 mm 50/250
AJ10.25 6410011301616 Ø25 mm 25/150
