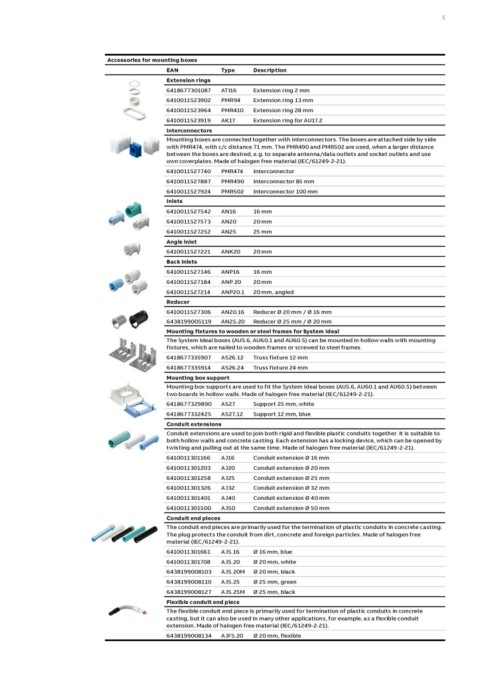

Accessories for mounting boxes
EAN Type Description
Extension rings
6418677301087 ATI16 Extension ring 2 mm
6410011523902 PMR94 Extension ring 13 mm
6410011523964 PMR410 Extension ring 28 mm
6410011523919 AK17 Extension ring for AU17.2
Interconnectors
Mounting boxes are connected together with interconnectors. The boxes are attached side by side
with PMR474, with c/c distance 71 mm. The PMR490 and PMR502 are used, when a larger distance
between the boxes are desired, e.g. to separate antenna/data outlets and socket outlets and use
own coverplates. Made of halogen free material (IEC/61249-2-21).
6410011527740 PMR474 Interconnector
6410011527887 PMR490 Interconnector 85 mm
6410011527924 PMR502 Interconnector 100 mm
Inlets
6410011527542 AN16 16 mm
6410011527573 AN20 20 mm
6410011527252 AN25 25 mm
Angle inlet
6410011527221 ANK20 20 mm
Back inlets
6410011527146 ANP16 16 mm
6410011527184 ANP 20 20 mm
6410011527214 ANP20.1 20 mm, angled
Reducer
6410011527306 AN20.16 Reducer Ø 20 mm / Ø 16 mm
6438199005119 AN25.20 Reducer Ø 25 mm / Ø 20 mm
Mounting fixtures to wooden or steel frames for System Ideal
The System Ideal boxes (AU5.6, AU60.1 and AU60.5) can be mounted in hollow walls with mounting
fixtures, which are nailed to wooden frames or screwed to steel frames.
6418677335907 AS26.12 Truss fixture 12 mm
6418677335914 AS26.24 Truss fixture 24 mm
Mounting box support
Mounting box supports are used to fit the System Ideal boxes (AU5.6, AU60.1 and AU60.5) between
two boards in hollow walls. Made of halogen free material (IEC/61249-2-21).
6418677329890 AS27 Support 25 mm, white
6418677332425 AS27.12 Support 12 mm, blue
Conduit extensions
Conduit extensions are used to join both rigid and flexible plastic conduits together. It is suitable to
both hollow walls and concrete casting. Each extension has a locking device, which can be opened by
twisting and pulling out at the same time. Made of halogen free material (IEC/61249-2-21).
6410011301166 AJ16 Conduit extension Ø 16 mm
6410011301203 AJ20 Conduit extension Ø 20 mm
6410011301258 AJ25 Conduit extension Ø 25 mm
6410011301326 AJ32 Conduit extension Ø 32 mm
6410011301401 AJ40 Conduit extension Ø 40 mm
6410011301500 AJ50 Conduit extension Ø 50 mm
Conduit end pieces
The conduit end pieces are primarily used for the termination of plastic conduits in concrete casting.
The plug protects the conduit from dirt, concrete and foreign particles. Made of halogen free
material (IEC/61249-2-21).
6410011301661 AJ5.16 Ø 16 mm, blue
6410011301708 AJ5.20 Ø 20 mm, white
6438199008103 AJ5.20M Ø 20 mm, black
6438199008110 AJ5.25 Ø 25 mm, green
6438199008127 AJ5.25M Ø 25 mm, black
Flexible conduit end piece
The flexible conduit end piece is primarily used for termination of plastic conduits in concrete
casting, but it can also be used in many other applications, for example, as a flexible conduit
extension. Made of halogen free material (IEC/61249-2-21).
6438199008134 AJF5.20 Ø 20 mm, flexible
