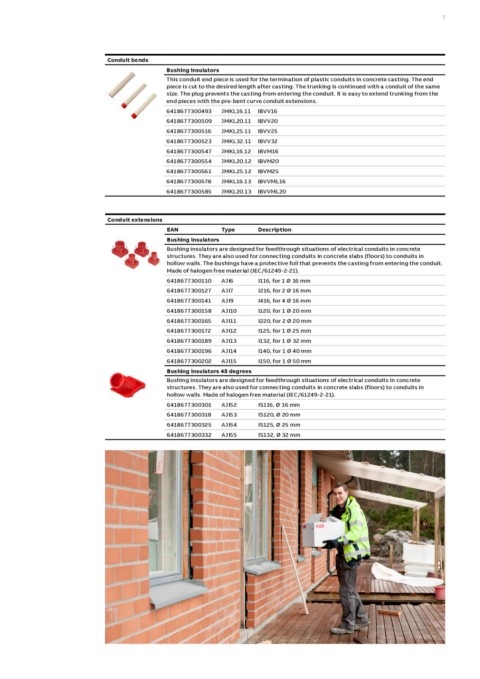

Page 7 - ABB_Installation_materials_leaflet

7

Conduit bends

Bushing insulators
This conduit end piece is used for the termination of plastic conduits in concrete casting. The end
piece is cut to the desired length after casting. The trunking is continued with a conduit of the same
size. The plug prevents the casting from entering the conduit. It is easy to extend trunking from the
end pieces with the pre-bent curve conduit extensions.

6418677300493 JMKL16.11 IBVV16

6418677300509 JMKL20.11 IBVV20

6418677300516 JMKL25.11 IBVV25

6418677300523 JMKL32.11 IBVV32

6418677300547 JMKL16.12 IBVM16

6418677300554 JMKL20.12 IBVM20

6418677300561 JMKL25.12 IBVM25

6418677300578 JMKL16.13 IBVVML16

6418677300585 JMKL20.13 IBVVML20

Conduit extensions

EAN Type Description

Bushing insulators

Bushing insulators are designed for feedthrough situations of electrical conduits in concrete
structures. They are also used for connecting conduits in concrete slabs (floors) to conduits in
hollow walls. The bushings have a protective foil that prevents the casting from entering the conduit.
Made of halogen free material (IEC/61249-2-21).

6418677300110 AJI6 I116, for 1 Ø 16 mm

6418677300127 AJI7 I216, for 2 Ø 16 mm

6418677300141 AJI9 I416, for 4 Ø 16 mm

6418677300158 AJI10 I120, for 1 Ø 20 mm

6418677300165 AJI11 I220, for 2 Ø 20 mm

6418677300172 AJI12 I125, for 1 Ø 25 mm

6418677300189 AJI13 I132, for 1 Ø 32 mm

6418677300196 AJI14 I140, for 1 Ø 40 mm

6418677300202 AJI15 I150, for 1 Ø 50 mm

Bushing insulators 45 degrees

Bushing insulators are designed for feedthrough situations of electrical conduits in concrete
structures. They are also used for connecting conduits in concrete slabs (floors) to conduits in
hollow walls. Made of halogen free material (IEC/61249-2-21).

6418677300301 AJI52 IS116, Ø 16 mm

6418677300318 AJI53 IS120, Ø 20 mm

6418677300325 AJI54 IS125, Ø 25 mm

6418677300332 AJI55 IS132, Ø 32 mm
