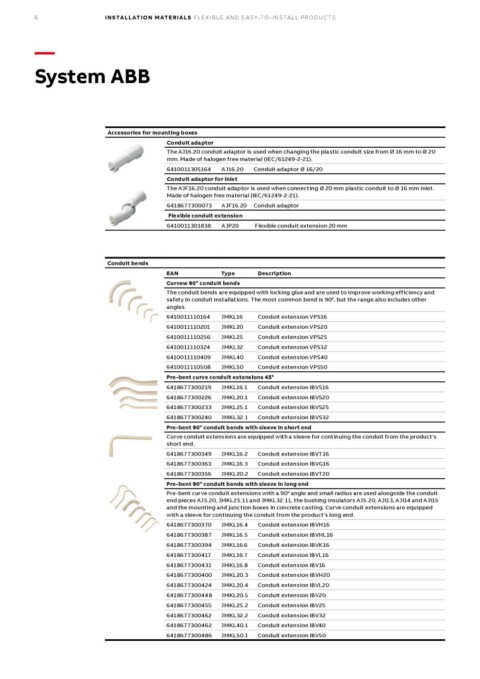

Page 6 - ABB_Installation_materials_leaflet

6 INSTALLATION MATERIALS FLEXIBLE AND EASY-TO-INSTALL PRODUCTS

—
System ABB

Accessories for mounting boxes

Conduit adaptor

The AJ16.20 conduit adaptor is used when changing the plastic conduit size from Ø 16 mm to Ø 20
mm. Made of halogen free material (IEC/61249-2-21).

6410011305164 AJ16.20 Conduit adaptor Ø 16/20

Conduit adaptor for inlet

The AJF16.20 conduit adaptor is used when connecting Ø 20 mm plastic conduit to Ø 16 mm inlet.
Made of halogen free material (IEC/61249-2-21).

6418677300073 AJF16.20 Conduit adaptor

Flexible conduit extension

6410011301838 AJP20 Flexible conduit extension 20 mm

Conduit bends

EAN Type Description

Curvew 90° conduit bends

The conduit bends are equipped with locking glue and are used to improve working efficiency and
safety in conduit installations. The most common bend is 90°, but the range also includes other
angles.

6410011110164 JMKL16 Conduit extension VPS16

6410011110201 JMKL20 Conduit extension VPS20

6410011110256 JMKL25 Conduit extension VPS25

6410011110324 JMKL32 Conduit extension VPS32

6410011110409 JMKL40 Conduit extension VPS40

6410011110508 JMKL50 Conduit extension VPS50

Pre-bent curve conduit extensions 45°

6418677300219 JMKL16.1 Conduit extension IBVS16

6418677300226 JMKL20.1 Conduit extension IBVS20

6418677300233 JMKL25.1 Conduit extension IBVS25

6418677300240 JMKL32.1 Conduit extension IBVS32

Pre-bent 90° conduit bends with sleeve in short end

Curve conduit extensions are equipped with a sleeve for continuing the conduit from the product’s
short end.

6418677300349 JMKL16.2 Conduit extension IBVT16

6418677300363 JMKL16.3 Conduit extension IBVG16

6418677300356 JMKL20.2 Conduit extension IBVT20

Pre-bent 90° conduit bends with sleeve in long end

Pre-bent curve conduit extensions with a 90° angle and small radius are used alongside the conduit
end pieces AJ5.20, JMKL25.11 and JMKL32.11, the bushing insulators AJ5.20, AJI13, AJI14 and AJI15
and the mounting and junction boxes in concrete casting. Curve conduit extensions are equipped
with a sleeve for continuing the conduit from the product’s long end.

6418677300370 JMKL16.4 Conduit extension IBVH16

6418677300387 JMKL16.5 Conduit extension IBVHL16

6418677300394 JMKL16.6 Conduit extension IBVK16

6418677300417 JMKL16.7 Conduit extension IBVL16

6418677300431 JMKL16.8 Conduit extension IBV16

6418677300400 JMKL20.3 Conduit extension IBVH20

6418677300424 JMKL20.4 Conduit extension IBVL20

6418677300448 JMKL20.5 Conduit extension IBV20

6418677300455 JMKL25.2 Conduit extension IBV25

6418677300462 JMKL32.2 Conduit extension IBV32

6418677300462 JMKL40.1 Conduit extension IBV40

6418677300486 JMKL50.1 Conduit extension IBV50
