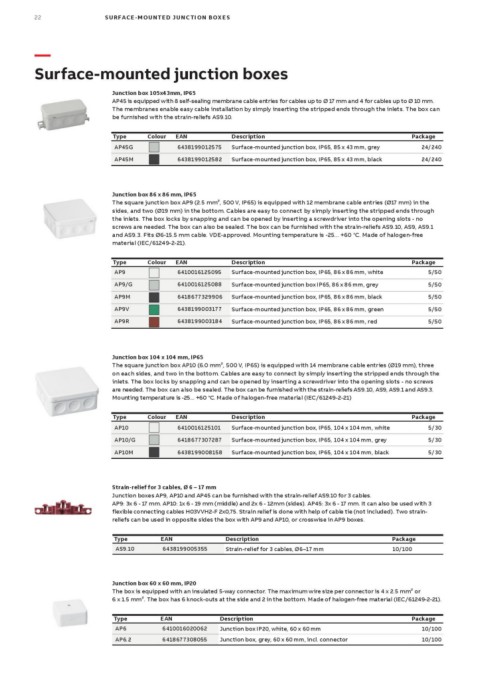

22 SURFACE-MOUNTED JUNCTION BOXES
—
Surface-mounted junction boxes
Junction box 105x43mm, IP65
AP45 is equipped with 8 self-sealing membrane cable entries for cables up to Ø 17 mm and 4 for cables up to Ø 10 mm.
The membranes enable easy cable installation by simply inserting the stripped ends through the inlets. The box can
be furnished with the strain-reliefs AS9.10.
Type Colour EAN Description Package
AP45G 6438199012575 Surface-mounted junction box, IP65, 85 x 43 mm, grey 24/240
AP45M 6438199012582 Surface-mounted junction box, IP65, 85 x 43 mm, black 24/240
Junction box 86 x 86 mm, IP65
The square junction box AP9 (2.5 mm², 500 V, IP65) is equipped with 12 membrane cable entries (Ø17 mm) in the
sides, and two (Ø19 mm) in the bottom. Cables are easy to connect by simply inserting the stripped ends through
the inlets. The box locks by snapping and can be opened by inserting a screwdriver into the opening slots - no
screws are needed. The box can also be sealed. The box can be furnished with the strain-reliefs AS9.10, AS9, AS9.1
and AS9.3. Fits Ø6-15.5 mm cable. VDE-approved. Mounting temperature is -25... +60 °C. Made of halogen-free
material (IEC/61249-2-21).
Type Colour EAN Description Package
AP9 6410016125095 Surface-mounted junction box, IP65, 86 x 86 mm, white 5/50
AP9/G 6410016125088 Surface-mounted junction box IP65, 86 x 86 mm, grey 5/50
AP9M 6418677329906 Surface-mounted junction box, IP65, 86 x 86 mm, black 5/50
AP9V 6438199003177 Surface-mounted junction box, IP65, 86 x 86 mm, green 5/50
AP9R 6438199003184 Surface-mounted junction box, IP65, 86 x 86 mm, red 5/50
Junction box 104 x 104 mm, IP65
The square junction box AP10 (6.0 mm², 500 V, IP65) is equipped with 14 membrane cable entries (Ø19 mm), three
on each sides, and two in the bottom. Cables are easy to connect by simply inserting the stripped ends through the
inlets. The box locks by snapping and can be opened by inserting a screwdriver into the opening slots - no screws
are needed. The box can also be sealed. The box can be furnished with the strain-reliefs AS9.10, AS9, AS9.1 and AS9.3.
Mounting temperature is -25... +60 °C. Made of halogen-free material (IEC/61249-2-21)
Type Colour EAN Description Package
AP10 6410016125101 Surface-mounted junction box, IP65, 104 x 104 mm, white 5/30
AP10/G 6418677307287 Surface-mounted junction box, IP65, 104 x 104 mm, grey 5/30
AP10M 6438199008158 Surface-mounted junction box, IP65, 104 x 104 mm, black 5/30
Strain-relief for 3 cables, Ø 6 – 17 mm
Junction boxes AP9, AP10 and AP45 can be furnished with the strain-relief AS9.10 for 3 cables.
AP9: 3x 6 - 17 mm. AP10: 1x 6 - 19 mm (middle) and 2x 6 - 12mm (sides). AP45: 3x 6 - 17 mm. It can also be used with 3
flexible connecting cables H03VVH2-F 2x0,75. Strain relief is done with help of cable tie (not included). Two strain-
reliefs can be used in opposite sides the box with AP9 and AP10, or crosswise in AP9 boxes.
Type EAN Description Package
AS9.10 6438199005355 Strain-relief for 3 cables, Ø6–17 mm 10/100
Junction box 60 x 60 mm, IP20
The box is equipped with an insulated 5-way connector. The maximum wire size per connector is 4 x 2.5 mm² or
6 x 1.5 mm². The box has 6 knock-outs at the side and 2 in the bottom. Made of halogen-free material (IEC/61249-2-21).
Type EAN Description Package
AP6 6410016020062 Junction box IP20, white, 60 x 60 mm 10/100
AP6.2 6418677308055 Junction box, grey, 60 x 60 mm, incl. connector 10/100
