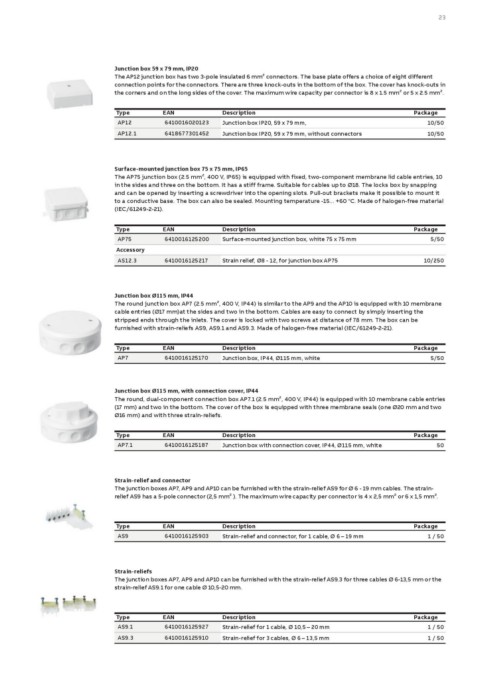

23

Junction box 59 x 79 mm, IP20
The AP12 junction box has two 3-pole insulated 6 mm² connectors. The base plate offers a choice of eight different
connection points for the connectors. There are three knock-outs in the bottom of the box. The cover has knock-outs in
the corners and on the long sides of the cover. The maximum wire capacity per connector is 8 x 1.5 mm² or 5 x 2.5 mm².

Type EAN Description Package
AP12 6410016020123 Junction box IP20, 59 x 79 mm, 10/50
AP12.1 6418677301452 Junction box IP20, 59 x 79 mm, without connectors 10/50

Surface-mounted junction box 75 x 75 mm, IP65
The AP75 junction box (2.5 mm², 400 V, IP65) is equipped with fixed, two-component membrane lid cable entries, 10
in the sides and three on the bottom. It has a stiff frame. Suitable for cables up to Ø18. The locks box by snapping
and can be opened by inserting a screwdriver into the opening slots. Pull-out brackets make it possible to mount it
to a conductive base. The box can also be sealed. Mounting temperature -15... +60 °C. Made of halogen-free material
(IEC/61249-2-21).

Type EAN Description Package
AP75 6410016125200 Surface-mounted junction box, white 75 x 75 mm 5/50
Accessory
AS12.3 6410016125217 Strain relief, Ø8 - 12, for junction box AP75 10/250

Junction box Ø115 mm, IP44
The round junction box AP7 (2.5 mm², 400 V, IP44) is similar to the AP9 and the AP10 is equipped with 10 membrane
cable entries (Ø17 mm)at the sides and two in the bottom. Cables are easy to connect by simply inserting the
stripped ends through the inlets. The cover is locked with two screws at distance of 78 mm. The box can be
furnished with strain-reliefs AS9, AS9.1 and AS9.3. Made of halogen-free material (IEC/61249-2-21).

Type EAN Description Package
AP7 6410016125170 Junction box, IP44, Ø115 mm, white 5/50

Junction box Ø115 mm, with connection cover, IP44
The round, dual-component connection box AP7.1 (2.5 mm², 400 V, IP44) is equipped with 10 membrane cable entries
(17 mm) and two in the bottom. The cover of the box is equipped with three membrane seals (one Ø20 mm and two
Ø16 mm) and with three strain-reliefs.

Type EAN Description Package
AP7.1 6410016125187 Junction box with connection cover, IP44, Ø115 mm, white 50

Strain-relief and connector
The junction boxes AP7, AP9 and AP10 can be furnished with the strain-relief AS9 for Ø 6 - 19 mm cables. The strain-
relief AS9 has a 5-pole connector (2,5 mm² ). The maximum wire capacity per connector is 4 x 2,5 mm² or 6 x 1,5 mm².

Type EAN Description Package
AS9 6410016125903 Strain-relief and connector, for 1 cable, Ø 6 – 19 mm 1 / 50

Strain-reliefs
The junction boxes AP7, AP9 and AP10 can be furnished with the strain-relief AS9.3 for three cables Ø 6-13,5 mm or the
strain-relief AS9.1 for one cable Ø 10,5-20 mm.

Type EAN Description Package
AS9.1 6410016125927 Strain-relief for 1 cable, Ø 10,5 – 20 mm 1 / 50
AS9.3 6410016125910 Strain-relief for 3 cables, Ø 6 – 13,5 mm 1 / 50
