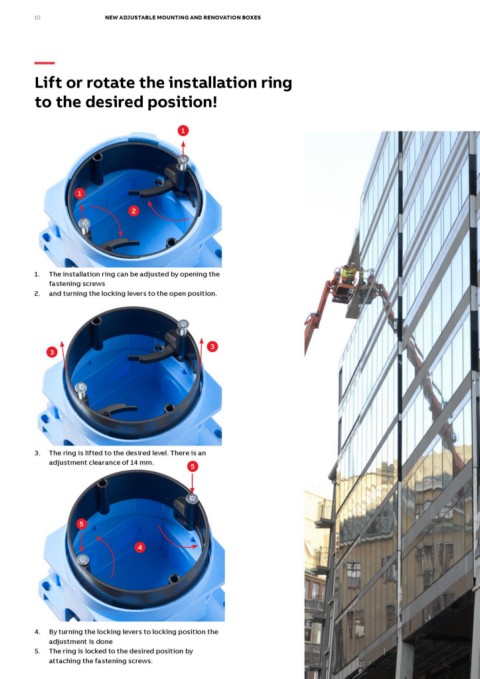

10 NEW ADJUSTABLE MOUNTING AND RENOVATION BOXES

—

Lift or rotate the installation ring
to the desired position!

1

1
2

1. The installation ring can be adjusted by opening the
fastening screws

2. and turning the locking levers to the open position.

33

3. The ring is lifted to the desired level. There is an

adjustment clearance of 14 mm. 5

5
4

4. By turning the locking levers to locking position the
adjustment is done

5. The ring is locked to the desired position by
attaching the fastening screws.
