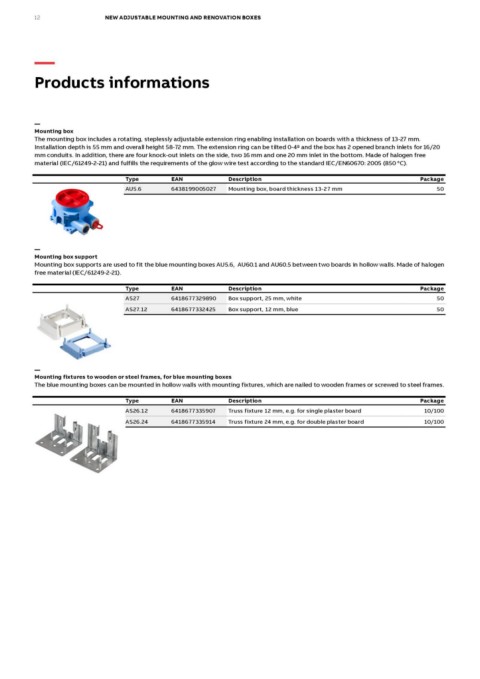

12 NEW ADJUSTABLE MOUNTING AND RENOVATION BOXES
—
Products informations
—
Mounting box
The mounting box includes a rotating, steplessly adjustable extension ring enabling installation on boards with a thickness of 13-27 mm.
Installation depth is 55 mm and overall height 58-72 mm. The extension ring can be tilted 0-4º and the box has 2 opened branch inlets for 16/20
mm conduits. In addition, there are four knock-out inlets on the side, two 16 mm and one 20 mm inlet in the bottom. Made of halogen free
material (IEC/61249-2-21) and fulfills the requirements of the glow wire test according to the standard IEC/EN60670: 2005 (850 °C).
Type EAN Description Package
AU5.6 6438199005027 Mounting box, board thickness 13-27 mm 50
—
Mounting box support
Mounting box supports are used to fit the blue mounting boxes AU5.6, AU60.1 and AU60.5 between two boards in hollow walls. Made of halogen
free material (IEC/61249-2-21).
Type EAN Description Package
AS27 6418677329890 Box support, 25 mm, white 50
AS27.12 6418677332425 Box support, 12 mm, blue 50
—
Mounting fixtures to wooden or steel frames, for blue mounting boxes
The blue mounting boxes can be mounted in hollow walls with mounting fixtures, which are nailed to wooden frames or screwed to steel frames.
Type EAN Description Package
AS26.12 6418677335907 Truss fixture 12 mm, e.g. for single plaster board 10/100
AS26.24 6418677335914 Truss fixture 24 mm, e.g. for double plaster board 10/100
