— 9

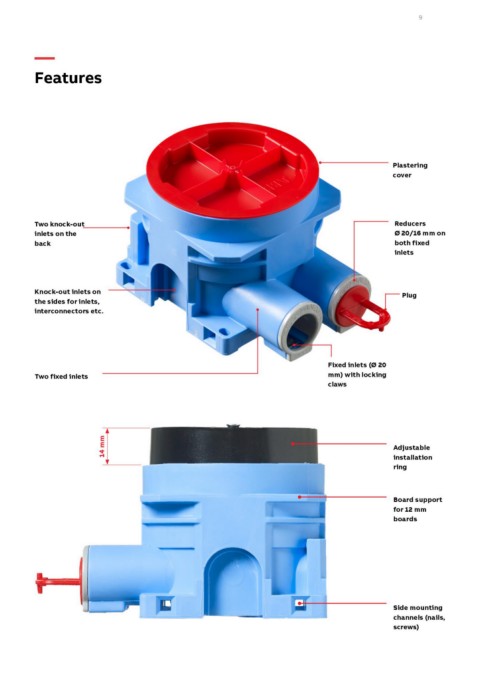

Features Plastering
cover
Two knock-out
inlets on the Reducers
back Ø 20/16 mm on
Knock-out inlets on both fixed
the sides for inlets, inlets
interconnectors etc.
Plug
Two fixed inlets
Fixed inlets (Ø 20
14 mm mm) with locking
claws

Adjustable
installation
ring
Board support
for 12 mm
boards

Side mounting
channels (nails,
screws)
