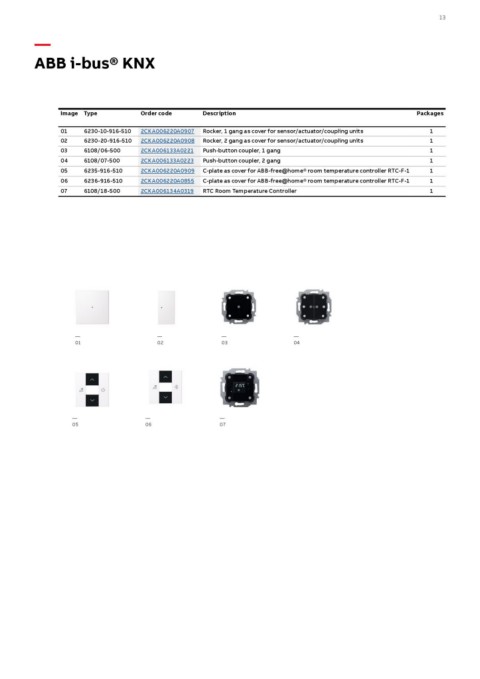

13

—
ABB i-bus® KNX

Image Type Order code Description Packages

01 6230-10-916-510 2CKA006220A0907 Rocker, 1 gang as cover for sensor/actuator/coupling units 1
1
02 6230-20-916-510 2CKA006220A0908 Rocker, 2 gang as cover for sensor/actuator/coupling units 1
1
03 6108/06-500 2CKA006133A0221 Push-button coupler, 1 gang 1
1
04 6108/07-500 2CKA006133A0223 Push-button coupler, 2 gang 1

05 6235-916-510 2CKA006220A0909 C-plate as cover for ABB-free@home® room temperature controller RTC-F-1

06 6236-916-510 2CKA006220A0855 C-plate as cover for ABB-free@home® room temperature controller RTC-F-1

07 6108/18-500 2CKA006134A0319 RTC Room Temperature Controller

— —— —

01 02 03 04

—— —
05 06 07
